Continuous Gravity Die Casting Machine with Competitive Price

Product Description

Gravity Die Casting Machine for Auto Aluminum / Brass Parts casting
Product Description
0-90°tilting gravity casting machine, it uses for pouring aluminum ,copper or brass products for auto parts or others foundry company.. Below are our gravity casting machine photos:
We use YUKEN brand solenoid valve and customized big brand oil cylinder for gravity casting machine , high quality oil tube. Make sure the casting machine quality is high for our customer. Product Parameters

Parameter / Model	JJ-5040	JJ-6050	JJ-8060	JJ-1080	JJ-1210
Mold plate Max.size	700*500mm	800*600mm	1100*700mm	1300*900mm	1500*1000mm
Mold Max.installation size	510*400mm	610*500mm	810*600mm	910*800mm	1200*800mm
Mold plate thickness	50mm	70mm	85mm	115mm	130mm
Open and close main cylinder diameter/stroke	Φ80*700mm (Double cylinder)	Φ80*700mm (Double cylinder)	Φ80*600mm (Double cylinder)	Φ100*700mm (Double cylinder)	Φ125*900mm (Double cylinder)
Core jacking cylinder diameter/stroke	Φ63*50mm	Φ63*50mm	Φ63*50mm	Φ63*50mm	Φ63*50mm
The Max. distance between two mold plate	900mm	900mm	900mm	1000mm	1200mm
The Min. distance between two mold plate	200mm	200mm	300mm	300mm	300mm
Tilt angle	0-90°	0-90°	0-90°	0-90°	0-90°
Tilt speed	Manually adjustable	Manually adjustable	Manually adjustable	Manually adjustable	Manually adjustable
Equipped with a two - way cold air system	solenoid valve	solenoid valve	solenoid valve	solenoid valve	solenoid valve
Power	AC 380V 50/60Hz	AC 380V 50/60Hz	AC 380V 50Hz	AC 380V 50/60Hz	AC 380V 50/60Hz
Rated power of hydraulic station	5.5KW	5.5KW	7.5KW	11KW	15KW
Hydraulic system pressure/flow ratingL/min	15Mpa/21	15Mpa/21	17Mpa/27	19Mpa/47	21Mpa/53

Our gravity casting machine have both manual and automatic function. , we accept customized .,it mainly use in aluminum / copper casting foundry ,. such as auto parts,motorcycle parts, . It also can produce casting parts with sand core.
Our Advantages
We are also a casting automatic production line manufacturer, we have gravity casting unit and turntable gravity casting production line , all use robobt to pouring ! It is easy to operate and save labour. increasingly increase prodcution ! and safe!
1.Gravity casting automatic production line
Advantage :
-14 sets gravity casting machines, large production for foundry company.
-Every 5-7minutes one circle pouring (according to product cooling time to set ),
- One robot pouring , continous pouring( can be 24 hours working )
- One 11KW hydraulic station ( power saving ) for full production line
- rotary round turntable , diameter: 10M
- Just need 1-2 workers to operate( save labour)
- It also can come true robot pick up products, can according to customers'
need to make( come true unmanned automation )

2.RobotIc gravity casting Unit
Advantage :
- Four or six gravity casting machines for one unit
- Every 5 minutes one circle pouring (according to product cooling time to set ),
- One robot pouring , continous pouring( can be 24 hours working )
- One 5.5KW hydraulic station ( power saving ) for gravity casting unit
- Just need 1-2 workers to operate( save labour)
- can pouring product with sand core,
We have our own robot pouring system, which we have gotten the patent and
software copyrights Certification.
Gravity casting automatic production line Photos :

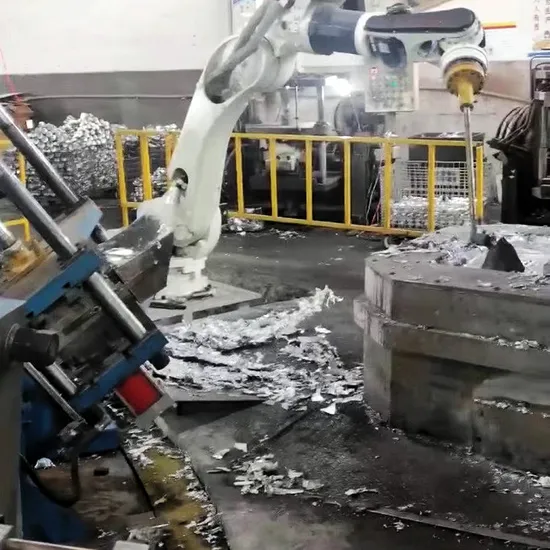

Robotic gravity casting Unit photo:
Company Profile:
We are automatic equipment and automatic production line manufacturer in China. Mainly for metal and foam products' equipment . Such as aluminum or brass gravity casting production line ,aluminum or brass gravity casting unit, PU foam products production line , gravity casting machine, high pressure PU foam machine ...., all our automatic production line with robot pouring , SIEMENS PLC programming, robot on line tracking pouring. We have our own patent and software copy rights. we have more than 6 years experience, with experienced team . Our most customers are China mid or big companys , we have our own export rights. With high quality and best price products, we belive we can have a good cooperation.
Workshop:
Our Office
Certifications
Our company Gravity casting automatic production line and gravity casting unit with our own patent and software copyrights certification:
Packaging & Shipping
After Sales Service
One year warranty , Lifetime maintenance
We provide on line or video or customer's factory service.
Installation Instructions
For gravity casting production line, once the equipment reach customer's factory, we will arrange the workers to customer's company to install,test ,training .
Lead time : 15-30 days after receive the deposite by T/T ( for single gravity casting machine) , 90days for production line .
Payment term : 50% deposite by T/T, 50% paid before delivery

Installation :
For single gravity casting machine, we can teach how to install it by video or phone.
Service: on line / phone/ video/ oversear if need.

---
