Woodworking Machine Spindle Veneer Peeling Machine for Veneer Making

Product Description

Product Description

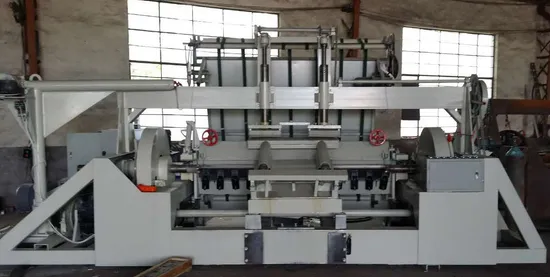

VERTICAL TYPE 2.7M SPINDLE PEELING MACHINE

Specification
Max. Veneer thickness (mm)	0.2-2.6
Max. log diameter (mm)	1500
Max. log length (mm)	2600
Spindle diameter	110mm
Clamp size	Two sides clamping 4kwX2
Waste log diameter (mm)	110
Total Power (Kw)	40
Main motor (Kw)	22kw with Delta inverter control
Weight (Kg)	7500-8000kgs with backup system and veneer folder
Peeling speed (m/min)	speed is adjustable, 40-60m/min is good for edge taping
Overall size (mm)	6500×2300×2600

HORIZONTAL TYPE 2.7M SPINDLE PEELING MACHINE

No.	Specification	WXQ2600
1	Max. Veneer thickness (mm)	0.2-2.6
2	Max. log diameter (mm)	900
3	Max. log length (mm)	2600
4	Spindle diameter	90mm
5	Clamp size	Two sides clamping 4kwX2
6	Waste log diameter (mm)	90
7	Power (Kw)	36.3
8	Main motor (Kw)	22kw with Delta inverter control
9	Weight (Kg)	7500kgs with backup system and veneer folder
10	Peeling speed (m/min)	speed is adjustable, 40-60m/min is good for edge taping
11	Overall size (mm)	6500×2350×2550

Packaging & Shipping

Workshop Processing

Company Profile

Weihai Reliable Imp&Exp Corp., Ltd is located in Linyi city, Shandong province, China, where is famous for the wooden panels and woodworking machinery. Our company was established in 2004, and have been engaged in the manufacturing and supply of woodworking machines since then, Including plywood production machinery, Particle Board production machinery (Linyi Factory), short cycle lamination machinery (Wuxi Factory) and other relevant machinery, and our customers are coming from all round the world, like India, Vietnam, Indonesia, Bangladesh, Sri Lanka, Saudi Arabia, Malaysia, Iran etc.
Our company has more than 20 experienced mechanical and electrical engineers, and they mainly focus on the research and development of the woodworking machinery. Meanwhile our factories are fully equipped with advanced lathe machine, grinding machine, planner and welder, which together contribute to the high precision machinery. Also we have a very strong and experience after-sale team, they are doing all commissioning and maintenance work for our customers.
Our company culture is "Quality is our for-ever goal, after-sale Service is our priority, win-win with customers", and we would like to cooperate with the friends from all around the world.
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

---
