Plastic Bottle Recycling Pelleting Machine Plastic Film Granulator PP PE Plastic Machine Price

Product Description

Waste Platic Recycling Machien PP PE Film Pelleting Machine
Contact Tina for Details
The plastic granulating unit is a recyclable type for the professional treatment of PP/PE LDPE, HDPE,
ABS, PVC, ETC. At the same time, it also belongs to environmental protection equipment.
A large number of used woven bags, plastic film, agriculture convenience bags, etc. through the plastic
ranulation unit into the secondary processing program, providing a strong cornerstone for the furniture
industry, daily necessities manufacturing.
1.Belt conveyor: Transfer the raw material to the crusher for crushing and washing
2.Crushing and washing machine:The machine can crush the waste plastic into small piece besides wash them and then
put them into the plastic granule making machine.
3.Conveyor:delivery crushered raw material to the pool cleaning
4.Pool:Clean the crushed raw material and precipitate the impurities.
5.Pool pulley:Slide the crushed raw material of the pool to reach the other end.
6.dewatering machine:Remove the broken plastic from the pool, with the function of dehydration
7.Conveyor+Automatic feeder:converyor send broken raw materials to the feeder,the feeder connect with pellet making
machine,replace the artificial pressure into the granulator

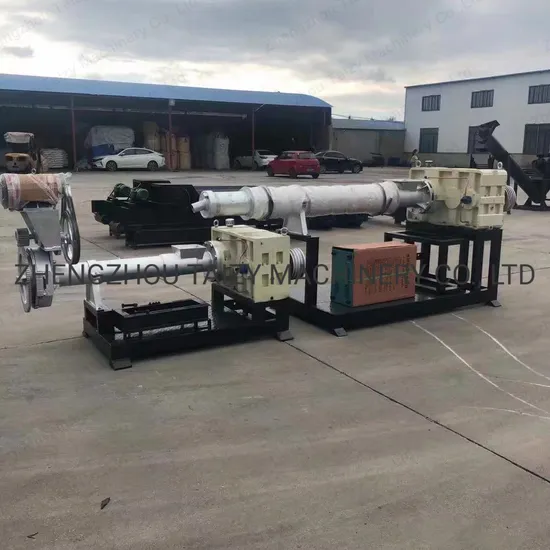

8.Host pellet making machine :The raw material is heated and melted in this machine
9.Second pellet making machine:The melted plastic is drawn through the die in the secondary machine
10.water tank :is used to cool the plastic pellet and send the pellet to next step-plastic cutting machine.
11.Plastic cutting machine:This machine is used to cut the plastic strip into small pieces and the size of pellet can be adjusted
as your requirements.
12.Plastic pellet packing machine:packing the final product(plastic pellet)
13.Conveyor:delivery the plastic pellet to the automatic packing machine
14.Control cabinet:The temperature control cabinet control the temperature of the plastic pellet machine and also make people
asy operate the machine. Parameter of plastic film recycling line

NO.	Item	Technical data
1	Conveyor	Power:3kw Size: Length 5m , Width 0.8m Capacity:1000-1200kg/h
2	PP PE crusher	Model:1000 Power :37kw+11kw Capacity :1000kg/h
3	Belt Conveyor	Power :1.5kw Size : (L) 4m* (W) 0.6mm Capacity:800-1200kg/h
4	Automatic Feeder	Power:3kw Capacity:800-1200kg/h
5	Main Plastic Pelleting Machine	Model : SL-260 Screw diameter : 260mm Screw length:3.6m Motor : 110kw
6	Vice Plastic Pelleting Machine	Model : SL-220 Screw diameter : 220mm Screw length:L1.6m Motor :22+18.5kw
7	Pellet Cutting Machine	Model :LY-F300 Power :7.5kw Capacity: 800kg/h
8	Plastic Pellet Baging Machine	Power :1.5kw Size :1000*1200*1100mm

Company Profile
Our Advantages

Certifications

FAQ
Q1: Are you a manufacturer or trade company?
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.
Q4:What if the machine is damaged?
A5: One year warranty and all-round after-sales service. After this deadline, we shall charge at a low cost to keep after-sales service.

---
