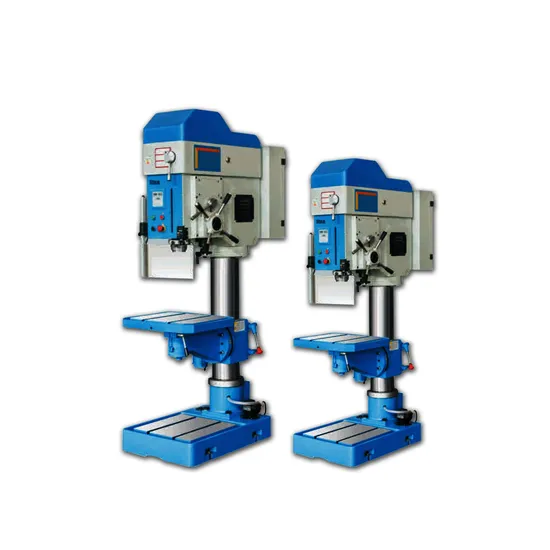

| Specifications | ZWB5030 | ZWB5040 | ZWB5050 |
| Max. drilling diameter | 30mm | 40mm | 50mm |
| Max. tapping diameter | M20mm | M27mm | M30mm |
| Spindle travel | 135mm | 180mm | 240mm |
| Spindle taper | MT3 | MT4 | MT5 |
| Column diameter | 120mm | 160mm | 180mm |
| Spindle speed | 50-300,300-2500r/min | 50-250,250-2500r/min | 50-200,200-2000r/min |
| Rotation angle of the table around the column in the horizontal direction | ±180° | ±180° | ±180° |
| Table travel | 480mm | 550mm | 550mm |
| Distance from spindle center to column surface | 320mm | 360mm | 360mm |
| Table size | 420x360mm | 470x390mm | 470x390mm |
| Base size | 400x390mm | 450x460mm | 450x460mm |
| Table T-slots (No./width) | 2x14mm | 2x14mm | 2x14mm |
| Base T-slots (No./width) | 2x18mm | 2x18mm | 2x18mm |
| Max. distance from spindle nose to table | 540mm | 570mm | 540mm |
| Max. distance from spindle nose to base | 1110mm | 1160mm | 1130mm |
| Max. torque | 95N.m | 200N.m | 350N.m |
| Main motor | 2.2kW | 3kW | 4kW |
| Feed motor | 90W | 90W | 90W |
| Feed speed rate | 21-213mm/min | 18-183mm/min | 20-204mm/min |
| Coolant pump motor | 40W | 40W | 40W |
| Electromagnetic clutch motor | 21W | 24W | 32W |
| N.W./G.W. | 510/560kg | 690/745kg | 845/905kg |
| Overall size | 960x500x1950mm | 1045x665x2095mm | 1055x665x2150mm |
| Packing size | 1100x620x2260mm | 1170x680x2330mm | 1170x680x2390mm |
