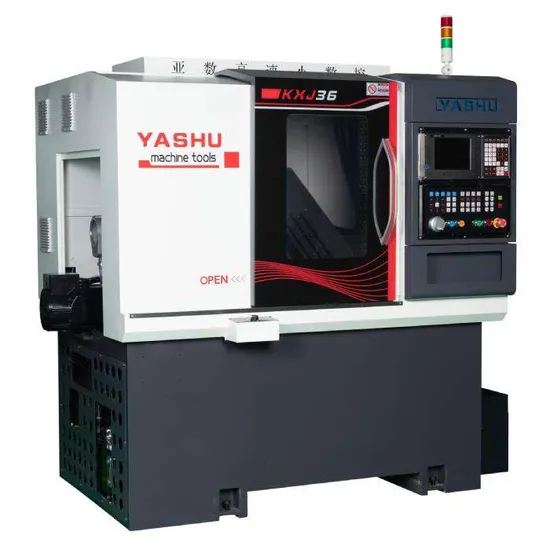

Chinese CNC Lathe Machine for Turning and Milling

US$6,700.00
1-4 pieces
US$6,500.00
5+ pieces

Basic Info.

Model NO.
KX-36J
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Weight (Kg)
1500
Max. Turned Length (mm)
180
Spindle Bore(mm)
36 mm
After-Sales Service Provided
Free Spare Parts
Dimension(L*W*H)
1400*1200*1650
Machining Capacity
Light Duty
Warranty of Core Components
1 Year
Key Selling Points
Automatic / Good Price / High Percision
Processing Type
Metal Processing Machine
Voltage
380V
Max. Swing Diameter (mm)
350mm
Travel (X Axis)(mm)
600 mm
No. of Spindles
Single
Max. Swing Diameter
350mm
Type
Horizontal
Transport Package
Standrad Export Package
Trademark
Yashu
Origin
Guangdong, China
HS Code
8458110090
Production Capacity
500 Piece/Pieces Per Month

Product Description

KX-36J Suitable for mass production of copper, iron, aluminum, stainless steel bar material within 35mm, and automatic mass production of open forging and punching parts within 50mm, can also be installed hydraulic chuck to achieve the production of single parts within 250mm. Adopt a number of patented technologies such as high rigidity, anti-deformation structure, suitable for machining unilateral cutting amount within 2mm, precision tolerance within ±0.01mm, finish within 1.6 products. Widely used in hard rail CNC lathe, with 36J CNC lathe small parts to replace the application, to improve the efficiency and cost-efficiency ratio.

Product Description
Application scope of processing Normal Use Value Maximum Value
Working
ability		 Spindle bore φ35mm φ35mm
Maximum particle diameter
(disc type)		 250mm 300mm
Maximum length of workpiece to be processed 210mm 230mm
Single side cutting of
stainless steel		 2mm 3mm
Repositioning accuracy ±0.01mm
Smooth finish 1.6RA
Center height of tool rest 40mm
Turning diameter φ250mm
Square tool specification 16mm
Travel X axis travel 600mm
Z axis travel 230mm
Feed X-axis fast moving velocity 25m/min 30m/min
Z-axis fast moving velocity 25m/min 30m/min
X axis servo power 1.2KW
Z axis servo power 1.2KW
Spindle Spindle speed 3500r/min 4000r/min
Spindle motor power 3.7KW
Spindle nose A2-4
Support hydraulic chuck size 5 inch 6 inch
Dimensional
&
weight		 Dimensions 2050*1530*1950 mm
Weight 1800KG
