| US$100,000.00-450,000.00 | 1 Piece (MOQ) |

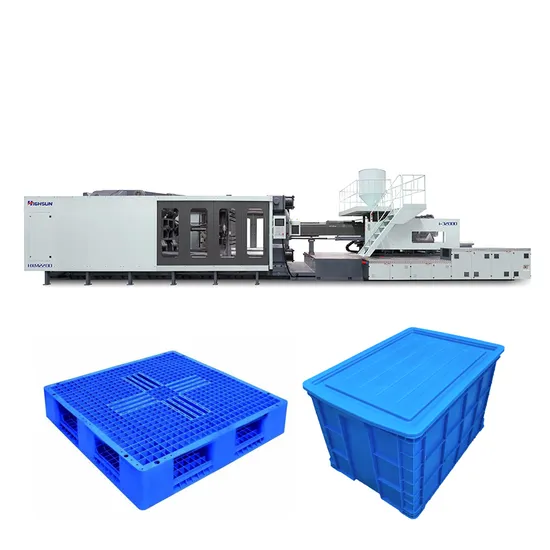

| MODEL: HXM2200 | |||||
| TECHNICAL PARAMETER TABLE | A | B | C | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 155 | 165 | 175 |
| SCREW L/D RATIO | L/D | 23 | 22 | 21 | |
| INJECTION CAPACITY IN THEORY | cm3 | 17737 | 20099 | 22609 | |
| INJECTION WEIGHT(PS) | g | 16140 | 18290 | 20574 | |
| oz | 569.3 | 645.1 | 725.7 | ||
| INJECTION PRESSURE | MPa | 181 | 160 | 142 | |
| INJECTION RATE | g/s | 1342 | 1521 | 1711 | |
| PLASTICIZING CAPACITY | g/s | 100 | 115 | 135 | |
| SCREW SPEED | rpm | 66 | |||
| CLAMPING UNIT | CLAMPING FORCE | KN | 22000 | ||
| MOVING MOULD-PLATE STROKE | mm | 1950 | |||
| MAX. MOULD HEIGHT | mm | 1700 | |||
| MIN. MOULD HEIGHT | mm | 780 | |||
| SPACE BWTWEEN TIE-BARS (W*H) | mm | 1800*1620 | |||
| HYDRAULIC EJECTOR FORCE | KN | 520 | |||
| HYDRAULIC EJECTOR STROKE | mm | 450 | |||
| EJECTOR NUMBER | n | 33 | |||
| OTHERS | PUMP PRESSURE | MPa | 17.5 | ||
| MOTOR POWER | KW | 38+38+47+47 | |||
| HEATING CAPACITY | KW | 110 | |||
| MACHINE DIMENSION (L*W*H) | m | 19.40*3.90*5.10 | |||
| MACHINE WEIGHT | t | 155 | |||
| OIL TANK CAPACITY | L | 2270 | |||
