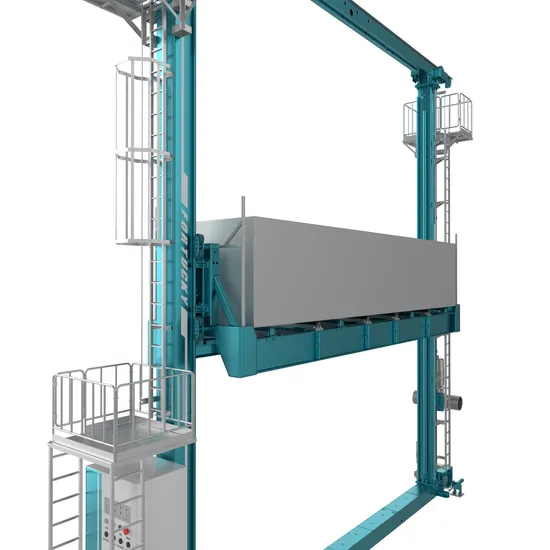

Heavy-Duty Stacker

Product Description

Product Description

As the core equipment of heavy-duty automated stereoscopic warehouses, heavy-duty stackers have the advantages of ultra-heavy load capacity (maximum load can reach 30t), strong reliability, fast speed, high precision, and high safety factor. They are widely used in the automated storage and retrieval of heavy-duty special-specification products such as steel coils, aluminum coils, paper coils, and die-castings, and in industries such as tobacco, food ingredients, frozen produce, paper, home appliances, and tires.
Features & Advantages

Large load capacity: rated load reaches 30t, which can meet the storage of materials of different weights
High reliability: safe, stable and reliable operation, easy to operate
High precision: walking, lifting and fork positioning accuracy is controlled within 3mm;
Dual lifting mechanism: Dual drive mechanisms work together to ensure fast and safe lifting of goods
Small vibration: large-size heavy rails, matching rail press-fitting and buffer devices ensure smooth operation
Easy to maintain: easy to operate and quickly replace the wheel box or parts for maintenance, which greatly shortens the downtime and improves the operation efficiency.

Product Parameters

Technical Parameters	Unit	Typical range/value
Height	m	≤30
Rated load	kg	≤20000
Walking speed	m/min	≤160
Walking acceleration	m/s²	0.4
Lifting speed	m/min	≤40
Lifting acceleration	m/s²	0.4
Fork speed	m/min	≤30/60
Fork acceleration	m/s²	0.5/1
Positioning accuracy	m	≤±3
Proper temperature	ºC	-25-+65
Operating mode		Manual/stand-alone/connected/maintenance
Assignment style		Single cycle/compound cycle

---
