US$1.00
2,000-999,999 Meters
US$0.85
1,000,000+ Meters
Basic Info.
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Certification
RoHS, CE, ISO9001
Applications
Aerial Installation/Direct-Burial/Duct
Characteristics
Good Mechanical and Temperature Performance
Transport Package
Wooden Drum Iron-Wooden Drum with Fumigated or Not
Production Capacity
35000km/Year
Product Description
Product Description
Description:

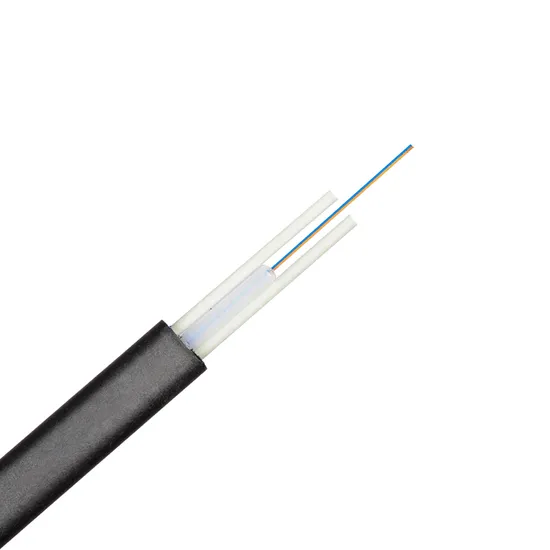

PiogoodsR Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.
PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.
Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.
Parameters:
| Cores available | 1,2,4,6,8,12,24 |
| Outer diameter | 4-9mm |
| Application | FTTH |
| Outer jacket thickness | 2.0mm |
| Double strength member | 2x1.5mmFRP |
| Tube No. | 1 |
Fiber
NO | Tube
NO | Max.Fibers
per tube | Cable OD (mm) | Weight Kg/km | Max. pulling power Long/short-term N | Max. pressure Long/short-term |
| 1-12 | 1 | 24 | 5*7 | 40 | 300/1100 | 300/1000 |
| 24 | 1 | 24 | 5.5*7.5 | 45 | 300/1100 | 300/1000 |
Shenzhen Pioneergoods Communication Co., Ltd., established in 2009 and located in Shenzhen,specializes in R&D, production, sales, and technical services for fiber telecom equipment and FTTH solutions. As a leading pro-vider in China, we offer two main product lines:Opticl Fiber Cable: Armored Fiber Optic cable/Duct Fiber Optic cable/Aerial Fiber optic Cable/Direct Buried Fiber Optic cable/Figure 8 Fiber Optic cable/Underwater Fiber Optic cable/ADSS Fiber Optic cableOptical cable installation hardware: Profession-al hardware for indoor and outdoor installation of optical cable, to provide you with a full range of solutions to install optical cable.We prioritize quality, im-plementing a comprehensive control svstem to ensure all products meet the highest standards. From raw materials to delivery, our professional team oversees every step to guarantee excellence. Trusted by global clients like Belden, STC, and Telefonica, we also provide OEM services tailored to cus-tomer needs.At POGOODS, we value customer satisfaction, fostering inno-vation, quality, and efficiency. Choose us for reliable solutions and mutual success. FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
>>
