Anchor Windlass Single Double Gypsy Hydraulic Anchor Windlass for Ship

Product Description

Anchor windlass Single Double Gypsy hydraulic anchor windlass electric anchor windlass for ship Product Description
Marine hydraulic winch is usually with heavy rated load and widely applied on ship, on the dock or on the offshore platforms for lifting, pulling, towing, mooring etc. It is welcomed by customers especially for heavy-duty marine work and operations. There are built-in hydraulic winch, exposed hydraulic winch, high speed hydraulic winch and low speed hydraulic winch.


Product Parameters

Model	Rated load	Rated speed	Rope capacity	Rope diameter	Motor power	Overall Dimensions
	KN	m/min	m	mm	KW	mm
YT1-16	160	7.5	500	28	45	3200x4050x2200
YT1-20	200	7.5	500	30	55	3200x4050x2200
YT1-25	250	7.5	550	32	75	3600x4350x2580
YT1-32	320	7.5	600	36	90	3600x4500x2600
YT1-40	400	5	750	40	90	3700x4800x2860
YT1-50	500	5	750	52	110	3900x4900x3000
YT1-63	630	5	850	54	110	4000x5100x3100
YT1-80	800	5	1000	58	132	4250x5300x3300
YT1-100	1000	5	1000	64	180	4550x5500x3450
YT1-125	1250	5	1200	70	220	4850x5800x3700
YT1-130	1300	5	1200	72	220	5000x6800x3800
YT1-160	1600	4	1500	82	220	5200x7000x3860
YT1-200	2000	4	1500	90	250	5350x7200x4000
YT1-250	2500	4	1500	102	300	5500x7450x4200
YT1-300	3000	4	1500	110	360	5800x7600x4200

Major component

1)Compact costruction, safe & easy operation.
2) Hydraulic Anchor Winch with double drums in waterfall Specifications Details Hydraulic Mooring Winch with double drums in waterfall It consists of a hydraulic motor,spur gears with cover, three main shafts , two drums, ratchet wheel and detent, etc. Feature Double drums in waterfall. Two drums can work simultaneously and independently. Each Drum's load 90T (1st layer) Nominal speed 90T X 5m/min(High speed, Winch control Local control & Remote control including amplifier and joystick Brake Hydraulic operated band brake (normally shut) Clutch Hydraulic claw clutch Power Two units 90T double drums winch share one hydraulic power unit placed in a room with doors. Two winches drums can work simultaneously and independently.

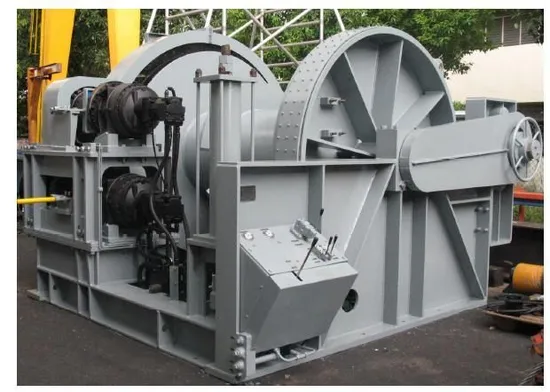

The main components of the winch include: hydraulic motor (low speed or high speed motor), hydraulic NC multi-plate brake, gearbox, clutch (optional), drum ( single drum or double drum), support shaft, frame spooling device (optional) etc. The winch motor has high mechanical efficiency. The brakes and gearbox are installed in the winch drum, and the drum, support shaft and frame are designed in accordance with mechanical requirements, which makes the overall structure simple and reasonable with sufficient strength and rigidity.
Advantages
In structure: the winch structure is compact, and it has nice appearance with small volume and light weight, etc.;
In function: the hydraulic winches have high safety and efficiency, large starting torque, good stability with low speed, low noise, reliable operation etc;
In application: the marine hydraulic winches can be used on ship deck, in port, on offshore platforms and so on. They can be used for anchoring, mooring, towing and other marine operations, to meet different work requirements, there are marine hydraulic towing winch, hydraulic anchor winch and hydraulic mooring winch supplied by us.

---
