High Speed Mixing Unit SRL-Z Series Heating/Cooling Mixing Unit

US$5,000.00
1 Piece
US$4,500.00
2+ Pieces

Basic Info.

Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Spiral
Working
High Speed Mixer
800kg/Hr
High Speed Mixer
PVC Mixing Machine
PVC Mixing Machine
Plastic Mixer Machine
Plastic Mixer Machine
PVC Mixer
Mixer Unit
Blades
Tungsten Coated
Motor
Weg
Control
Inverter
Material
Stainless Steel #304
Wall Thickness
8mm
Cooling
Water Cooling
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Wood
Specification
sgs
Trademark
middle tech
Origin
Zhangjiagang City
HS Code
84772090
Production Capacity
300kg/Hr

Product Description

Competitive price for Plastic industry PVC/SPVC/WPC Powder/dry blender/ granules/masterbatch/higher filler high speed Vertical/Cooling Mixer
Product Description
High-Speed Mixer is used in the material mixing, stirring, coloring and other process for plastic, rubber, daily chemical and other industries. It is the perferable equipment to produce plastic board, pipes, profiles and degradable plastics.
Features:
1. Mixed materials are made by negative pressure mixed principle

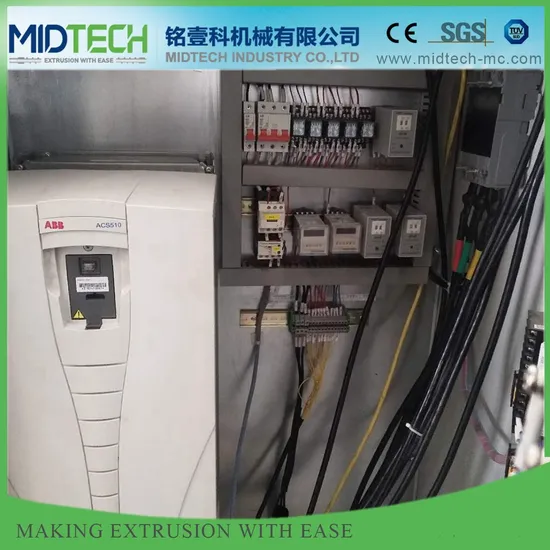

2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing
4. The blade was made by stainless steel pressure and passed the static and dynamic balance test
5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
Certificate: ISO9001: 2008, CE, SGS
SRL-Z Heat/Cool Heat/Cool Heat/Cool Heat/Cool Heat/Cool
Total volume (L) 100/200 200/500 300/600 500/1250 800/1600
Effective capacity (L) 65/130 150/320 225/380 330/750 600/1050
Stirring speed (RPM) 650/1300/200 475/950/130 475/950/100 430/860/70 370/740/50
Mixing time (Min.) 8-12 8-12 8-12 8-12 8-12
Motor power (KW) 14/22/7.5 30/42/11 40/55/11 55/75/15 83/110/22
Overall dimension(mm) 1950*1600*1800 4580*2240*2470 4800*2640*2480 5600*3000*3100 5170*3200*4480
Weight(kg) 2200 3400 3600 6500 9800
