Welcome to visit

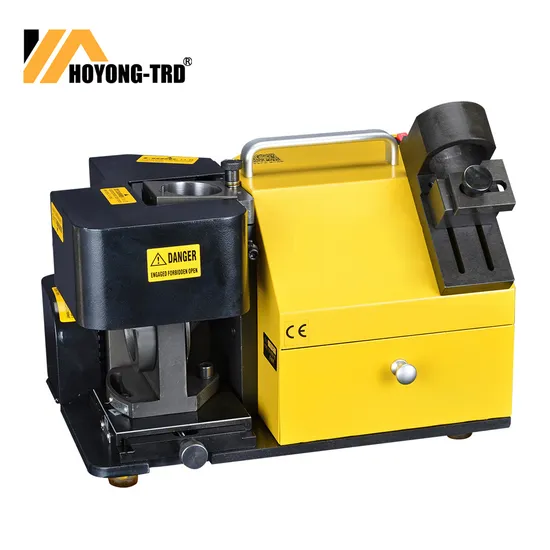

Mr-X5 13-30mm Combination Automatic High Precision End Mill Tool Grinder, End Mill Sharpener

US$300.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
MR-X5
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Weight
55kgs
Max. Collet Capacity
18mm
Max. Grinding Dia.
18mm
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month

Product Description

Portable End Mill Grinder MR-X1 Product Description
1. Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.
Model: MR-X5
Diameter: Φ13-Φ30mm
Power: 220V/250W
Speed: 4400rpm
Point angle: 0°-5°
Dimension: 40*28*31cm
Weight: 28KG
Standard Equipment: Grinding wheel :SDC (for carbide)×1
Nine collets: Φ14,Φ16,Φ18,Φ20,Φ22,Φ24,Φ26,Φ28,Φ30
Two collet chucks:
2,4 flutes ×1 piece;
3,6 flutes×1 piece
Optional Equipment: Collets: Φ8,Φ10,Φ12
Grinding wheel :CBN (for HSS)
Grinding wheel(16-20mm) :CBN (for HSS)
