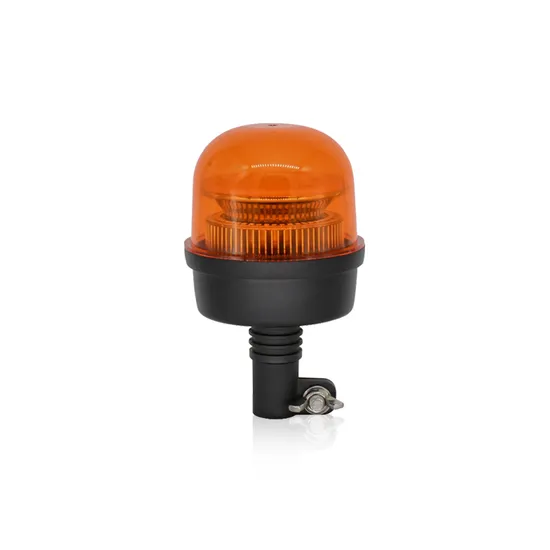

LED Warning Beacon Light with DIN Pole Mounted and ECE R65 & IP69K Waterproof

Product Description

LED Warning Beacon light with DIN Pole Mounted and ECE R65 & IP69K Waterproof
Vehicle warning beacon lights are widely used in various vehicles and industries, including municipal maintenance, transportation, construction machinery, construction sites, healthcare, firefighting, school buses, ships, aviation, factories, and other sectors. They are particularly essential in poor visual conditions such as rainy, foggy, or dark weather, as well as during nighttime when visibility is less than 50 meters. These lights serve to timely alert drivers of passing vehicles to pay attention to safety, providing warnings for special situations and helping to prevent economic losses. Therefore, there are certain technical specifications for the optical parameters, frequency, waterproofing, and other aspects of warning lights. Both the National Ministry of Transportation and the European Economic Commission (ECE) have implemented certification systems (R65/R10) for warning lights, requiring the corresponding certification mark (E-mark) to be imprinted on the products. International standard cigarette lighter power connector installation is quick and easy.
Features:
ECE R65 and SAEJ845 Class1 international standards: 24-watt LED, combined with the mixed wide-angle optical reflector, the diffused light intensity is greater than 280 cd (0°), which plays a role in long-distance safety warning. The thermal characteristic solution of the warning light LED: The modular integrated heat dissipation structure design of the LED circuit board and the aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminates the influence of high temperature on the early light decay of the warning light, and realizes a warranty period of more than three years. IP69K Waterproof Grade: The fully sealed and uniformly pressured patented design of the vehicle-mounted warning light is suitable for outdoor, rain, dust, high-pressure water flushing and other mechanical equipment vehicle safety warnings. The flash and shrink fixed pattern, the Flash Frequency: 2 Hz ≤ F ≤ 4 Hz meets the international standards of ECE R65 and SAE J845 Class1. International universal cigarette lighter power connection plug, nylon flexible bracket is high temperature resistant and vibration resistant. Built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design avoid damage to the warning light due to improper use and vehicle pulse voltage. Vehicle warning lights are widely used in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses and other vehicle safety warnings. Parameter:
IP69K waterproof car warning lamp

Model	DF-J-LY24-DM
Maximum Power Consumption	28W
Light Source Type	48X0.5W high brightness LED
Waterproof Grade	100% IP69K(100KPa)
Anti-fogging Process	100% nitrogen filling
Thermal temperature pressure relief process	stainless steel waterproof breathable valve
alarm light color	amber
Material	die-casting aluminum alloy base (ADC12)+aluminum alloy heat dissipation disc +aluminum PCB substrates +PC lamp shade
Lens	ABS mixed wide-angle reflecting mirror
alarm mode	double-flash fixed mode
Color Temperature	y≤x-0.120
	y≥0.390
	y≥0.790-0.670x
0-degree illumination intensity (cd/eff)	≥250
Flash Frequency	2 Hz ≤F ≤ 4 Hz
International Quality Standard	ECE R65/ R10(EMC)
Installation Method	international universally cigarette lighter interface
Anti-vibration Grade	10G
Operating Temperature	-40ºC to +65ºC
operating voltage range	DC10-32V
Weight	700g
Specification Size	190(H) x118(D) mm

Detailed Photos
FAQ FAQ
Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time? A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
