Energy Saving High Efficiency Full Automatic Tissue Packaging Machine in Abu Dhabi

Product Description

Salient Features:
17-axis servo motion control+remote IOT+data management+human-machine interaction+suspension design+spiral knife+tracking and dividing+inspection
Scope of Application:
Suitable for automatic film packaging of soft draw type facial tissue, square tissue, napkin, cutter paper, paper towel paper, etc.
Main Performance Structural Characteristics: It can complete the steps of batch numbering (optional), cutting easy-to-tear line, filming, feeding, wrapping, end sealing, corner folding, side sealing, and output, etc. It has a compact structure, beautiful packaging, firm sealing, and compression sealing to ensure the squareness of the product; Adopting full servo motor and 10" touch screen, motion control system, human-machine interface display operation is more clear and simple, high degree of automation and intelligence, fast speed, operation is more efficient and more human nature; Adopting automatic material handling and conveying mechanism, it is convenient to link with automatic production line, which can reduce labor cost greatly; Adopting photoelectric eye automatic detection and tracking system, the empty package does not go film, maximizing the savings of packaging materials, film wrapping adopts air-expansion type loading, the overall use of point-to-point fixed film wrapping, first fixed and then cut the film, to exclude the phenomenon of bias film, shifting and other phenomena; Wide packaging range, easy adjustment, and quick changeover between various specification sizes; Adopting flat push type, high speed and smooth operation, modularization of packing area, more convenient to change products; Perfect cut-off with spiral cutter technology; Separation of heat dissipation and heating, perfect use of energy consumption, high speed operation without sticking to the bag; Pushing material transmission adopts full servo continuous push mode, so as to achieve stable, efficient and fast; the front end can be linked with large gyratory paper cutter, etc., and the back end can be linked with soft drawer in the package machine, box packaging line, etc.. Product Description

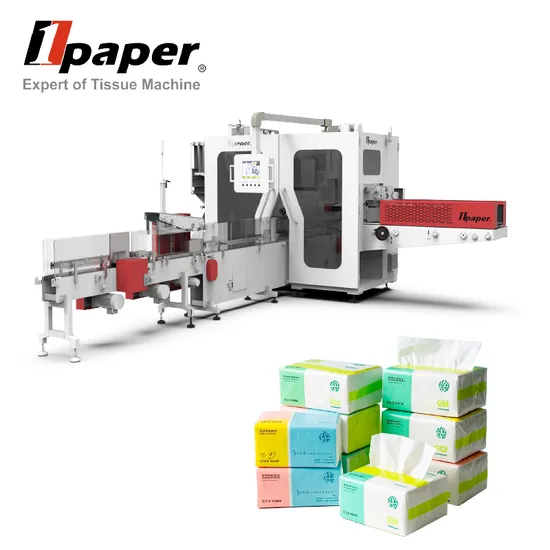

High-speed automatic soft tissue packaging machine
Applicable scenarios: The automated packaging of tissue paper, shaving cream paper, and tableware paper (soft tissue products), particularly suitable for e-commerce channels and small- to medium-sized paper product manufacturers. It can easily handle a variety of specifications and product categories.
Product Parameters

Tem/model		OPR Serirs
Packaging form		Three-dimensional
Packing material		CPP film,PE film,BOPP film
Packing specification	Length	95-230mm
	Width	80-120mm
	Height	30-150mm
Maximum packing dimensions		L230×W120×H150mm
Packing speed		≤128(bags/minute)
Heating power		7KW
Motor power		16KW
Total power		23KW
Power supply type		Three-phase five-wire 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.7 MPa
Air consumption		200-260L/min
Outline dimensions	Main machine	L4280×W1450×H1915mm
	Conveying mechanism	L3850×W750×H1420mm
Machine weight		≈4000Kg

Detailed Photos
Printing Samples
Company Profile Found in 2010
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.is a national high-tech enterprise and Zhejiang Specialising in ultra new enterprise . Focus on tissue paper equipment for 15 years, the main automatic tissue paper production line, automatic cotton soft production line, etc. It has rich experience in new factory preparation consulting of tissue paper. production workshop layout design, digital factory construction, production line transformation and upgrading, etc. it has sold well as 1000 customers in Kimberly-Clark, Vinda,Hengan, Gold Hongye and other 1000 customers in 60 countries or regions, etc., and is highly recognized.
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.
Our Workshop
Exhibition
Our Parthers
Certification
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 15+ years covering an area of 8,000 square meters,have more than 104 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries. 2. Product quality: From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.Providing solutions and services to 1,000+ customers across 50+ countries and regions, earning high recognition. Our product repurchase rate reaches 72.8%, with the highest individual customer repurchasing 27 times. Leading sales in the Arab and North African regions. 3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs. 4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment. 5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.

---
