Hbt60 Trailer Mounted Beton Concrete Pump

Product Description

Technical Parameters

Model	HBT60	HBT60R
Max Theoretical Concrete Output (Low/High pressure) (m³/h)	45/60	45/60
Max Concrete Pumping Pressure (Low/High pressure) (Mpa)	7/13	7/13
Concrete Slump	120-230	120-230
Aggregate Size (mm)	gravel≤40, pebble≤50
Power (KW)	Electric motor 90	Diesel Engine 129
Speed (r/min)	1480	2300
Conveying Cylinder Diameter (mm)	Ø 100/1000	Ø 100/1200
Concrete Cylinder Diameter (mm)	Ø 200/1650	Ø 200/1650
High-Low Pressure Switch		√
Hydraulic Oil Tank Capacity (L)	500	500
Hopper Capacity (m³)	0.8	0.8
Fuel Tank Capacity (L)		180
Filling Height (mm)	1400	1400
Maximum Conveying Distance (vertical Height/Horizontal Distance) (m)	120/600	120/600
Pipe Cleaning Mode	High Pressure Water Washing
Overall Dimension (mm)	6000×2100×2260	6000×2100×2260
Total Weight (kg)	5800	6000

Main Configuration:
HBT60 CONCRETE PUMP (Electric Motor)

Item	Brand or Manufacturer	Place of Origin
Electric Motor, 90KW	Jiangsu lideer	China
Main Oil Pump, K3V112*2	KAWASAKI	Korea
PLC	Mitsubishi	Japan
Oil Cylinder	Hunan XIELI	China
Concrete Cylinder	Wuxi Shuangyu	China
Hydraulic hose	Manuli	Italy
Main Valve Group	BolSeen	Germany
Hydraulic oil - HML-46	Beijing CHANGCHENG	China
S Valve	RUNSUN	China
Glass Plate & Cutting Ring	Zhuzhou ZHENXIANG	China

HBT60R CONCRETE PUMP (Diesel Engine)

Item	Brand or Manufacturer	Place of Origin
Diesel Engine, 129KW	Weichai & DEUTZ	China
Main Oil Pump, K3V112*2	KAWASAKI	Korea
PLC	Mitsubishi	Japan
Oil Cylinder	Hunan XIELI	China
Concrete Cylinder	Wuxi Shuangyu	China
Hydraulic Hose	Manuli	Italy
Main Hydraulic Valve	BolSeen	Germany
Hydraulic oil - HML-46	Beijing CHANGCHENG	China
S Distribution Valve	RUNSUN	China
Glass Plate & Cutting Ring	Zhuzhou ZHENXIANG	China

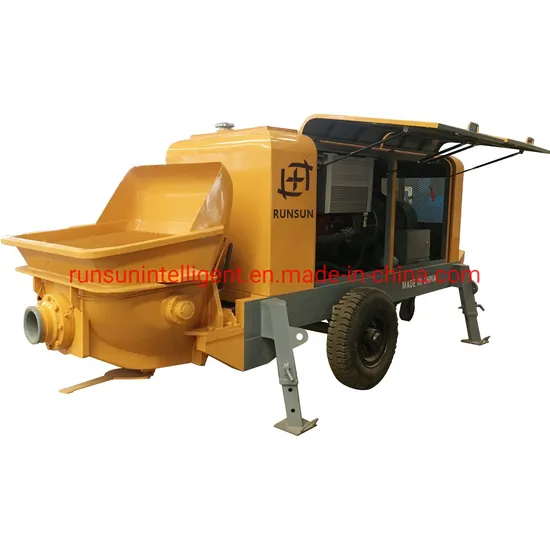

HBT60 Electric Motor Trailer Mounted Concrete Pump
Runsun Intelligent Technology Co.,ltd is a specialized manufacturer of various mortar and concrete machine. such as mortar mixer, concrete mixer, mortar grout pump, mortar spraying machine, concrete pump, fine stone shotcrete pump, concrete mixer pump and so on. We have more than 30 years' experience in designing and manufacturing mortar and concrete machine. Our machine exported more than 300 sets different types of the concrete pump (Driven by Diesel Engine and Electric Motor, Discharging Volume from 12 m3/h to 90 m3/h) to over 72 countries. Our main customers are from Australia, Colombia, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc. Widely used in used in high-rise building, high-speed railway, bridges, tunnels and so on.
Technical Advantages
1.Powerful machine:adopting electric motor(best in China), diesel engine(Yuchai or Weichai & Deutz).
2. High quality electrical component, such as Siemens, Mitsubishi etc.
3. Hydraulic system also adopting famous brand element, using South Korea Kawasaki or Germen REXROTH products.
4. Concrete piston can run back to washing tank, which can easily change the piston and convenient for maintenance.
5. Perfect after-sales service.6. High-quality parts, reducing cost to use.
Working Applications Fields:
