6ton Wheel Loader Lw600fv Front End Loader

Product Description

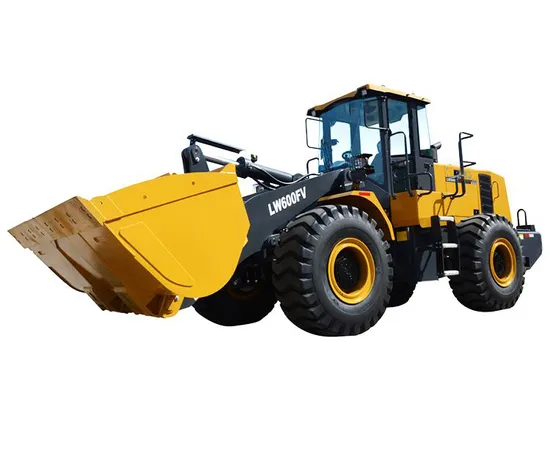

Chinese wheel loader 6 ton big heavy wheel loader LW600FV
LW600KN wheel loader is rooted in the customers' needs and based on the international R&D platform to thoroughly improvethe product reliability, economy, comfort, efficiency, maintenance convenience, and adaptability and is a preferential machinery product for the production organization in the fields of ports, mines, engineering constructions, and logistics.
Advantages and highlights:
1.The super-strong heavy-duty structural parts, enhanced drive system, andglobally supplied critical
parts can carry the torsion and impact loads underdiversified working conditions.
2.The high energy-conservation and high-efficiency hydraulic system is applied to realize higher fuel utilization efficiencyand more powerful working capacity.
3.The strong breakout force of 205kn ensure that the machine could adapt to various tough condition. The high-efficiency linkage system features fast motions, high breakoutforce, and powerful lifting capacity.
4.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
5.The large rock bucket with capacity of 3-4.5m³ is improved in terms of the work efficiency and adaptation. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
Specification

Description	Unit	Parameter value
Rated operating load	kg	6000
Bucket capacity	m³	3.0~4.5
Machine weight	kg	20000±300
Dump clearance at maximum lift	mm	3170~3750
Reach at maximum lift	mm	1200~1360
Wheel base	mm	3350
Tread	mm	2265
Max.breakout force	kN	205
Max.horse power	kN	174
Hydraulic cycle time-raise	s	≤5.9
Total hydraulic cycle time	s	≤10.9
Min. turning radius over tyres	mm	6005
Articulation angle	°	38
Gradeability	°	28
Tyre size		23.5-25
Overall machine dimension L×W×H	mm	8505×3220×3515
Model		SC11CB240.1G2B
Rated Power	kW	178
Fuel Tank	L	250
Hydraulic Tank	L	210
Travel Speed	km/h	6-34

---
