Linear Type Vibration Tumblers Polishers for Granite and Marble

Product Description

Linear Type Vibration Tumblers Polishers for Granite and Marble
The Vibratory finishing machine is used for marble, granite, limestone, mosaic stone and sandstone processing to antique and aged looking stone. It can be divided into rotary type and linear type.

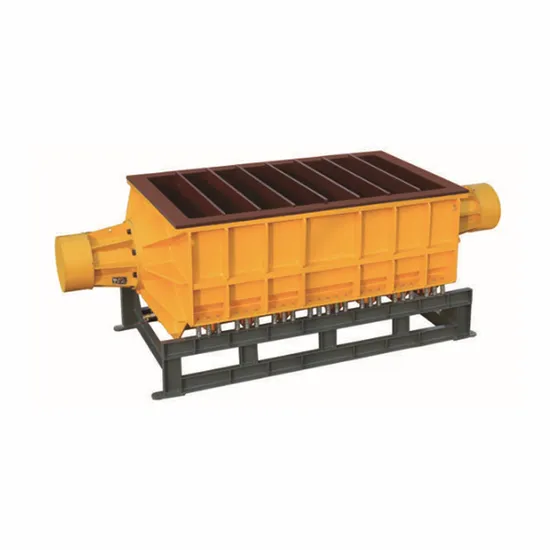

Linear type vibration machine
Pieces size: from 30*30cm to 90*60cm.

Main Structure and Working priciple
The linear type of vibratory polisher BV-T series consists of a vibratory motor, a trough vessel, pedestal springs and basement. The vibratory motor is connected with the vessel by means of bolts and then together they are installed on the compression springs linked to the basement.

The polishing process of the linear type vibratory polisher is a kind of vibratory grinding process in which the parts to be processed are put in the vessel where there are polishing abrasive pieces and grinding compound mixed by certain ratio. The regular vibration of the vessel causes a relative grinding movement between the abrasive pieces and the parts, thus removing the burrs from the parts, and at the same time rounding the sharp edges and polishing the surfaces of the parts.

Application:
The Antiqued surface ageing machine is mainly used for processing engine housing, engine shell, marble sheets and chassis parts etc, including removing burrs and rust, rounding and polish-processing, especially suitable for polish-processing of parts with complicated and irregular cavities. After processing, not only there is no damage to the original shape or precision of dimensions of the processed parts, but also the precision of the roughness of the processed parts can be raised 1 to 2 grades.
This surface ageing machine is suitable for the surface polishing of large quantity and batch of medium and large-sized parts.

Features:
1. Apply dividing bulkheads to create independent treatment areas inside the tank, possible to process delicate components or components of different lots.
2. Realizing semi-automation through electronic contolling system and greatly improve work efficiency in stone surface finishing.
3. Steel vibrating rank lined with polyurethane.
4. Two vibrating motors fixed sideways, equipped with adjustable weights, providing stable vibratory force.
Specification:

Model	BV-T1800	BV-T2800
Motor power	7KW	9KW
General power	2*7KW	2*9KW
R.P.M	1500	1500
Net volume	1750L	2750L
Dimension (L*W*H)	3500*1300*1200 (mm)	3300*1830*1740 (mm)
Weight	2800	4000
Max processing size	60*60cm	90*60cm

---
