Basic Info.
Automatic Grade
Automatic
Voltage&Motor
380V-3kw-3phase / 220V-2.2kw-1phase
Name
Hydraulic Hose Crimping Machine
Application
Crimp Hydraulic Hose, Fitting & Ferrule
Transport Package
Wooden Case
Production Capacity
2000/Set
Product Description

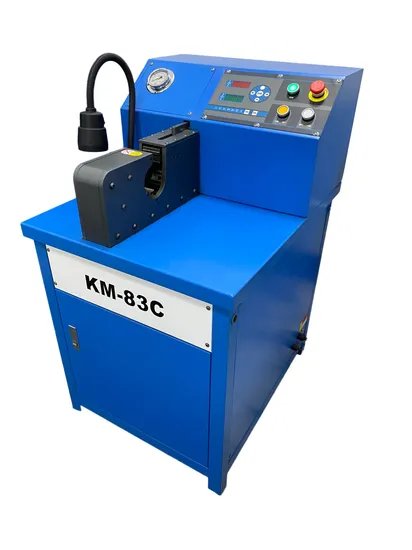

Technical Datas Of Side Opening Hydraulic Hose Crimping Machine KM-83C
| Model NO. | KM-83C |
| Crimper Rage | 1/8 '' - 5/8 '' |
| Voltage&motor | 380V/3kw |
| Crimping Force | 360 KN |
| Side Open | 50mm |
| Opening | 60mm |
| Open Time | within 2.5S |
| Close Time | within 4S |
| Hydraulic Oil | Winter: YB-N32; Summer: YB-N46 |
| No.of standard die sets | 4 sets |
| Systematic Pressure | 15Mpa |
| Machine size | 720*580*1020 (mm) |
| Weight without oil | 320KG |
More details photos of KM-83C:
Applition:
1. For Car
2. For Air conditioning hose
Our factory is located in Wangzhuang village, Shangcheng Town,Cheng'an County, Handan City,Hebei Province, China. Here the birds are singing and the flowers are fragrant.
We are warmly welcome friends from all over the world to visit our company.
Our company uses a variety of high-precision processing equipment, and every year will update the equipment.
Strict management, orderly arrangement and meticulous work spirit.
We arrend many exhibitions every year.The show attracts visitors from all over the world. We got a lot of consultation from the show.
Our company has passed ISO9001, SGS and CE certification.
>>
