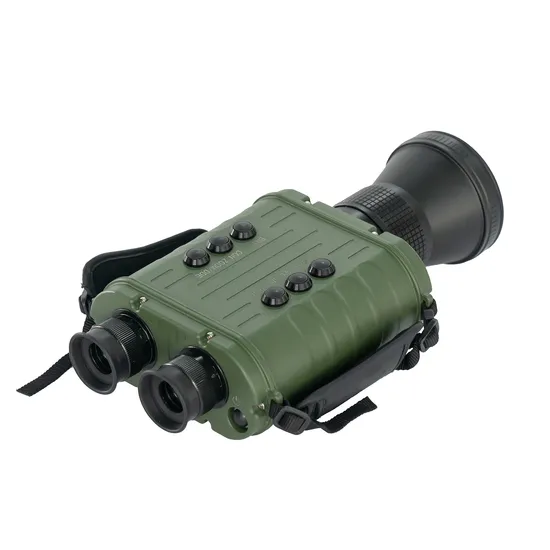

Handheld Thermal Imaging Binocular for Security Monitoring

Product Description

Features
1 324x256 resolution, uncooled Vox detector.
2 25μm, can obtain clear details, and realize longer distance monitoring.
3 NETD 50mk.
4 First developed 25~100mm 4x continuous optical zooming, can realize large- scale search and also identify distant target.
5 Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors.
6 Low power consumption, quick start, steady performance, clear and smooth images.
7 RS485, analog signal.
8 Easy to operate and maintain.
9 High aluminum alloy shell with nitrogen inside, can work under harsh
environment 24/7.

Technical indicators

Effecting Distance	Detecting distance: 6600m for vehicles, 2400m for people ; Recognition:1650m for vehicles,600m for people Identification:800m for vehicles,300m for people
Detector	Fourth generation of uncooled focal plane infrared detector; resolution at 324×256 pixels; spectrum range 8~14μm; NETD 50mk
Lens	F1.2 GE lens, FOV 6.2°×4.7°~24.6°×18.5°; Lens: 25~100mm GE ; Electric focusing
Image Processing	1.Built-in correcting circuits, no need of TEC; working temperature -40~+75ºC, good picture uniformity 2. Dynamic Detail Enhancer(DDE) 3. 9 pseudo color and hot black/hot white formats 4. Automatic Gain Control(AGC) technology 5. 2x digital magnification
Interface	1. RS485(PELCO D protocol, Baud rate 2400bps/s), RS-232(optional) 2. OSD menu 3. PAL compound video output 4. AC220V/AC24V/DC12V(optional) 5. waterproof navigation outlet
Size and Weight	1.size: 300mm × 150mm × 150mm 2.weight: 5Kg
Others	1.working temperature: -25ºC~+60ºC 2.storage temperature: -40ºC~+85ºC 3. under PH6.5~7.2, continuous spraying fog for 48 hours 4. power consumption: 8w(normal) 5. anti-vibration 15m/s² 5~200Hz 6. anti-impact: 150m/s²11ms

Effect Demo
Our Services
(1) We generally offer one year warranty. Extended warranty is also available.
(2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
(3) We accept OEM.
(4) We offer customized product.

---
