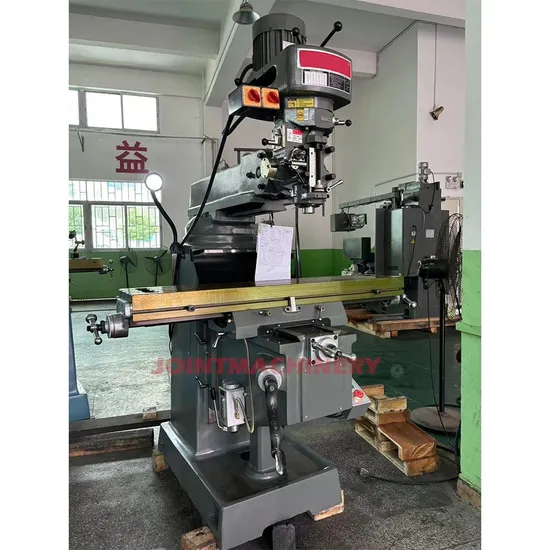

Fresadora 3 Axis Vertical Milling Machine Metal Manual Turret Milling Machine for Sale

Product Description

High-quality castings, precision processing to ensure excellent precision and stability
√ Spindle tolerance: 0.002mm.
√ Twice precision scraping can ensure processing quality.
√ Suitable for electronic parts, holes, slots, frames and mold proessing.
√ Taiwan original milling head, Japan NSK P4 precision spindle bearing.
1. WOKRTABLE
Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
2. TURRET MILLING HEAD
Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
3. SPINDLE
High precision R8/NT30/NT40 spindle, spindle runout:0.003mm.
4. X/Y/Z AUTO FEED
X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
5. DRO
Based on customer needs, optional 2-axis DRO or 3-axis DRO.
Fresadora 3 Axis Vertical Milling Machine Metal Manual Turret Milling Machine for Sale

Model				3VA
Table size			mm	1270*254*90
Travel		X axis	mm	880
		Y axis	mm	395
		Z axis	mm	340
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	400
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4530 (16 grade)
		60HZ	rpm	80-5440 (16-grade)
	Rotation speed (Variable speed milling head)	50HZ	rpm	50-3500
		60HZ	rpm	60-4200
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1500*1700*2150
Weight			kg	1280
