Basic Info.
Packaging Type
Through Hole
Structure
Fixed Capacitor
Manufacturing Material
Super Capacitor
Electrolyte
Super Capacitor
Specification
CE RoHS Reach Report
Production Capacity
100000PCS/Month
Product Description

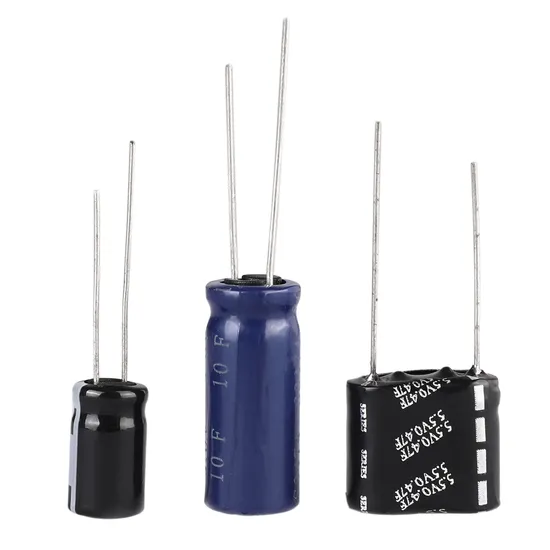

Cylindrial Super Capacitor TMCS01
Feature :*Small size,High Capacitance*Low ESR*Low LC*Over 500,000Cycle Life*Lead Wire TerminationApplication*Backup Power,AMR,Black Box*Auto Meter,DTU/FTU,POS Machine*Fast Charging&Motor Driving Power,Toy car and plane*Long life power,Solar traffic signDimension:
| Dimension(mm) |
| D+.5 | L±0.5 | F±0.5 | d±0.05 |
| 8 | 11 | 3.5 | 0.5 |
| 8 | 14 | 3.5 | 0.5 |
| 8 | 21 | 3.5 | 0.5 |
| 10 | 22 | 5 | 0.6 |
| 10 | 30 | 5 | 0.6 |
| 16 | 31.5 | 7.5 | 0.8 |
| 16 | 27 | 7.5 | 0.8 |
| 18 | 42 | 7.5 | 0.8 |
| 18 | 42 | 7.5 | 0.8 |
Specification:
| Item | Specification |
| Working Voltage | 2.5VDC |
| Surge Voltage | 2.65VDC |
| Working Temp. Range | -25ºC to 70ºC |
| Capacitance Tolerance | -10% to +40%(25ºC) |
| Temp. Characteristic(-25ºC to 70 ºC | △C≤Initial measured value 30%@25ºC
ESR≤Specified value 200% |
| Life(1000 hours @70ºC,2.5VDC | △C≤Initial measured value 30%
ESR≤Specified value 200% |
Cycle Life (Cycle between rated voltage and 1/2
rated voltage for 500,000 times | △C≤Initial measured value 30%@25ºC
ESR≤Specified value 200% |
Standard Products:
| Cap(F) | ESR(mΩ)
(1kHz) | LC(mA)
(RT 72hrs) | Rated
Current(A) | Peak
Current(A) | Mass(g) |
| 1 | 500 | 0.008 | 0.15 | 0.7 | 1 |
| 2 | 300 | 0.01 | 0.25 | 1.3 | 1.2 |
| 3.3 | 200 | 0.01 | 0.4 | 2.1 | 1.6 |
| 7 | 90 | 0.02 | 0.9 | 4.5 | 2.8 |
| 10 | 80 | 0.03 | 1 | 5.7 | 3.2 |
| 25 | 40 | 0.06 | 2 | 12.5 | 8.5 |
| 25 | 40 | 0.06 | 2 | 12.5 | 8.5 |
| 50 | 25 | 0.12 | 3.2 | 21.7 | 14.5 |
| 60 | 25 | 0.12 | 3.2 | 23.1 | 15.2 |
>>
