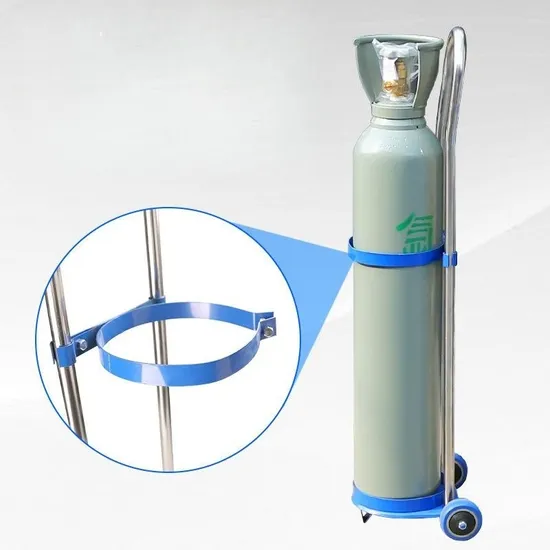

Gases in Oxygen Cylinder Wholesale 10L 20L 30L 40L 50L 55L Industrial High Pressure N2/Nitrogen O2/Oxygen CO2/H2/Hydrogen Helium Cylinders

Product Description

Product Description
1. Oxygen cylinders are high-pressure containers used for storing and transporting oxygen, usually made of alloy structural steel by hot stamping and pressing, and are cylindrical in shape. Applied in hospitals, emergency stations, and nursing homes.
2. Oxygen cylinders are ideal oxygen supply equipment for hospitals, emergency stations, sanatoriums, home care, battlefield rescue, personal health care, and various oxygen deficient environments. It is an indispensable beneficial friend for patients, the elderly, pregnant women, students, white-collar workers, as well as tourists, tunnel workers, and mountaineers.
3. The standard for the storage capacity of oxygen cylinders is their pressure resistance.
4. The upper pressure limit of a conventional oxygen cylinder is 15Mp (megapascals), which translates to 147 atmospheres. If high-pressure oxygen cylinders are needed, please indicate in advance as we can produce different types of oxygen cylinders.
5. The pressure resistance test value is 22.5Mp.
6. The pressure inside the steel cylinder for conventional filling should be around 12-15Mpa. If high-pressure oxygen cylinders are needed, please indicate in advance as we can produce different types of oxygen cylinders.
7. The gas inside the bottle cannot be completely exhausted, and a residual pressure of no less than 0.1-0.2MP should be retained.
The Following date just the 219mm 150Bar details, we have many diameters different volume, you can tell me your diameter, your wall thickness, working pressure, and valve type, then we choose right model for you.

Volume	Diameter	Wall thickness	Certificate	Height	Weight	Wroking pressure	Material	Testing pressure
20L	219mm	5.7mm	ISO9808-3	715mm	28kg	150BAR	37Mn	200BAR
25L	219	5.7mm	ISO9808-3	865mm	33kg	150BAR	37Mn	200BAR
32L	219	5.7mm	ISO9808-3	1075mm	40kg	150BAR	37Mn	200BAR
36L	219	5.7mm	ISO9808-3	1195mm	44kg	150BAR	37Mn	200BAR
37L	219	5.7mm	ISO9808-3	1225mm	45kg	150BAR	37Mn	200BAR
38L	219	5.7mm	ISO9808-3	1255mm	46kg	150BAR	37Mn	200BAR
40L	219	5.7mm	ISO9808-3	1315mm	48kg	150BAR	37Mn	200BAR
42L	219	5.7mm	ISO9808-3	1375mm	50kg	150BAR	37Mn	200BAR
45L	219	5.7mm	ISO9808-3	1465mm	54kg	150BAR	37Mn	200BAR
50L	219	5.7mm	ISO9808-3	1615mm	60kg	150BAR	37Mn	200BAR

Valve type: you can tell me the model of your valve, then we choose the right one
Our Production Area
After Sales Service
Strictly follow the ISO9001 quality assurance system for management, with a professional service team to supervise the application process of customer products, regularly track and provide feedback on issues related to on-site facilities and gas applications, to ensure the safe and stable use of gas for customers. The after-sales service commitment is as follows:
I. Professional services:
A professional service team composed of equipment engineers, instrument engineers, gas application engineers, analysis engineers, etc., to comprehensively solve all problems for users;
II. Planned services:
Regularly track customer on-site facilities, complete routine maintenance work according to plan, and minimize facility impact factors;
III. Timely service:
For temporary service needs of users, the company will arrange professional personnel to rush to the user's site in the shortest possible time to solve the problem as quickly as possible;
IV. Convenient services:
The company calls and receives user requests at any time, and promptly transfers them to the service department for processing;
V. Extended services:
Assist each user in making gas application plans, propose gas usage suggestions based on their process characteristics, and help reduce costs during their gas application process.
Certifications
