| US$13,000.00-18,000.00 | 2 Pieces (MOQ) |

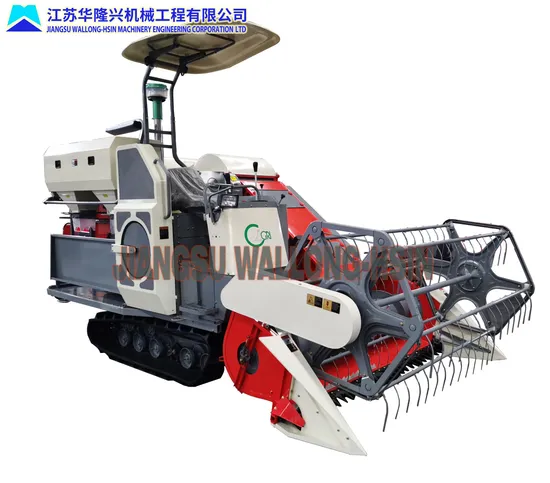

| Model | CA-2000 | ||
| Type | Crawler Self-propelled Full-feed | ||
| Engine | Type | Water-cooled, 4 stroke, Turbocharged Vertical Diesel | |
| Rated Power(kw/ps/rpm) | 55 / 75 / 2400 | ||
| Starting system | Electric Start | ||
| Dimensions | Overall Length(mm) | 4680 | |
| Overall Width(mm) | 2300 | ||
| Overall Height(mm) | 2605 | ||
| Feed Capacity(kg/s) | 2.5 | ||
| Fuel Tank Capacity(L) | 60 | ||
| Fuel Consumption(kg/ha) | 18-28 | ||
| Min. Ground Clearance(mm) | 310 | ||
| Operation Weight(kg) | 2400 | ||
| Driving System | Crawlers | Rubber Track | 450 x 90 x 49 |
| Track Gauge | 1150mm | ||
| Transmission | HST Capacity | 37cc | |
| Working Speed (km/h) | Lower: 0-2.88 | ||
| Medium:0-4.54 | |||
| High: 0-7.56 | |||
| Cutting | Pickup Reel Diameter(mm) | 900 | |
| Height Adjustment | Hydraulic | ||
| Cutting Width(mm) | 2000(2200 Optional) | ||
| Threshing Cylinder | Quantity | 1 | |
| Diameter x Length(mm) | Front Cylinder: 540 x 650 Rear Cylinder: 540 x 1285 | ||
| Grain Tank Capacity(kg) | 250kg (Small grain tank type) | ||
| Grain Unloading | Manually Grain Collection | ||
| Operation Efficiency Estimated Value (ha/ hour) | 0.25-0.48 | ||
| Stalk Chopper | Optional | ||
