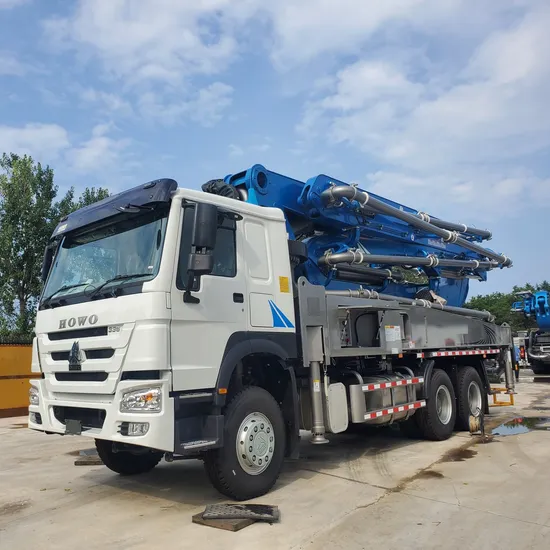

Sinotruck Diesel 37 38 42 48 52m HOWO Chassis Cement Portable Concrete Mixer Hydraulic Boom Pump Truck

Product Description

Product Description

37m Mobile Pump Truck Technical Specification
Items		Unit	Model of Whole Truck
			HX5292THB-37
Main Technical Parameters in Service	Theoretical Pumping Capacity	m3/h	150
	Pumping Capacity Index	Mpa.m3/h	586
	Theoretical Pumping Pressure	Mpa	8.5
	Hopper Capacity	L	700
	Feeding Height	mm	1370
	Distributing Valve		S valve
	Max. Distributing Radius	m	33.2
	Max. Distributing Height	m	37.2
	Max. Distributing Depth	m	24.3
	Height of Distributing Boom When Stretched	mm	8450
	Distance between Front Landing Legs	mm	6507
	Distance between Rear Landing Legs	mm	6600
	Distance between Front and Rear Landing Legs	mm	7179
	Diameter of Conveying Pipe	mm	125
	Length of End Hose	m	4
	Rotary Range of Distributing Boom		365°
	Number of Boom Sections		4
	Rotary Angle of Each Boom Section	°	92/180/180/270
	Remote-control Distance	m	200
Main Technical Parameters in Traveling Condition	Max. Traveling Speed	km/h	90
	Min. Turning Radius	mm	8800
	Brake Distance	m	7
	Approach Angle	°	16
	Departure Angle	°	11
	Chassis Model		HOWO
			ZZ5347V4647D1(EURO IV)
	Wheel Base between the First and the Second Axle	mm	4600
	Wheel Base between the Second and the Third Axle	mm	1350
	Front Tread	mm	2022
	Rear Tread	mm	1830
	Max. Engine Power	kw	380HP (EURO IV)
	Max Engine Torque	n.m	1350 (1100-1600r/min)
	Max. Grade Ability	%	35
	Fuel Consumption Limit	L/100km	34
	Overall Dimension (L ×W× H)	mm	12000×2490×3850
	Full-load Total Weight	kg	29000

Detailed Photos
Packaging & Shipping
Production Line
Company Profile

Our Advantages
1) We are manufacturer and have more than 10 years professional exporting experience.
2) 1 set truck or small truck parts order can be accepted.
3) Many colors and accessories can be customized.
4) The truck performance is adjustable according to your demand.
More Products:
Training and Service:
Customers and friends from overseas:
FAQ
1: Payment:
A:30% advance payment after signed the contract, 70% balance should be paid before delivery. We can accept T/T and L/C
2. Delivery time:
A:25-45 working days after payment is received. According to different trucks models
3. How about your product quality?
A: The products have passed the ISO, CCC, SGS, BV, and CONTECNA qualification certification. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
4: How long is the warranty period?A:The warranty of our products is 1 year or 50000km, which comes first

---
