Stainless Steel Fixed Ball Valve for Chemical Petroleum and So on

Product Description

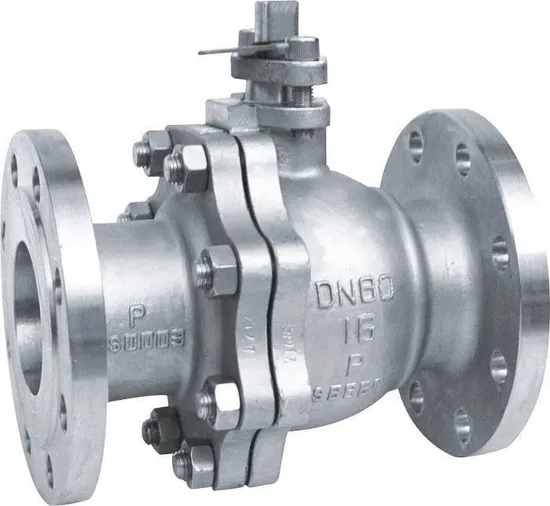

Product Description BALL VALVE Q47F-16P is a stainless steel fixed ball valve, which is widely used in petroleum, chemical, natural gas, metallurgy and other industries, especially for weakly corrosive media or conditions requiring high cleanliness Q47F-16P fixed ball valve with excellent sealing performance, two-way sealing, low flow resistance, compact structure, high reliability, long service life and other characteristics, is the ideal fluid control equipment in the industrial field
Q47F-16P fixed ball valve is suitable for chemical, petroleum, natural gas, metallurgy and other industries, especially suitable for hydrogen sulfide, impurities, serious corrosion conditions. In addition, it is also widely used in dyeing, textile, printing and dyeing, food, medicine and other fields

(DN)	L	D	D1	D2	b	Z-d	H	H1	D0
50	178	160	125	100	16	4-18	160	85	-
65	191	180	145	120	18	4-18	170	95	-
80	206	195	160	135	20	8-18	200	110	-
100	229	215	180	155	20	8-18	210	120	-
125	356	245	210	185	22	8-18	350	215	-
150	394	280	240	210	24	8-23	530	190	-
200	457	335	295	265	26	12-23	575	230	600
250	533	405	355	320	30	12-25	585	260	600
300	610	460	410	375	30	12-25	730	300	600
350	686	520	470	435	34	16-25	860	350	800
400	762	580	525	485	36	16-30	935	395	800
450	864	640	585	545	40	20-30	975	440	800
500	912	705	650	608	44	20-34	1060	485	800
600	1067	840	770	718	48	20-41	1170	591	800
700	1245	910	840	788	50	24-41	1270	686	800

PROFESSIONAL STAINLESS
STEEL PIPE MANUFACTURING

Product	Stainless Steel Pipe
Standard	ASTM, GB, EN, AISI,JIS, DIN,
Grade	300 Series: 302,304,304L,316,316L,309,310,317,321,347 Duplex Steel: 904L,2205,2507,2101,2520,2304 200 Series: 201,202 400 Series: 409,410,420,430,436,444,441,440c
Wall Thickness	0.5mm-50mm(Cold rolled),According to customer needs
Outer Diameter	Seamless:Φ 3mm-Φ1020mm; Welded:Φ 6mm-Φ630mm.According to customer demand
Length	1000mm~12000mm, as required.
Manufacturing Method	Cold Rolled ect.
Surface	Pickling ,sandblast, Bright Polished, Mirror polishing, ect.
Shape	Round,square
Seam	Seamless/Welded
MOQ	1 Ton
Package	Standard Sea-Worthy Packing
Leading time	Usually 10-15 days,Depending on customer order size
Payment terms	T/T 30% for deposit. 70% balance before shipment
Application area	Pipeline Transport,Boiler Pipe,Hydraulic/Automobile Pipe,Oil/Gas Drilling,Food/Beverage/Dairy Products,Machinery Industry,Chemical Industry,Mining,Construction & Decoration,Special Purpose,Solar photovoltaic,Electronic clean shop and so on.

Application And Usage Main Product Our company's main products are Finned Tube, Fin Tube Heat Exchanger, Air Cooler, Fin Tube Radiator, Shell and Tube Condenser, Boiler Energy-Saving Device, Boiler Tube, Economizer, Copper Pipe&Tube, Stainless Steel Pipe. Company Profile Exhibitiong&Partners Certifications Our company's certificate certification includes ISO 9001, ISO 9000, ISO 14001, ISO 14000 and so on. Packaging & Shipping FAQ Q1: What factors affect the price?
A: What factors affect the price? It is affected by material, specifications, market supply and demand, and raw material prices. Different materials have different prices. Large - diameter and thick - walled pipes have higher costs. Fluctuations in the supply - demand relationship and the prices of raw materials such as nickel and chromium also affect the price.
Q2: How to detect the quality of stainless steel seamless pipes?
A: The quality of stainless steel seamless pipes can be inspected as follows:
Appearance Check:Examine the surface for cracks, scratches and other defects.
Dimension Measurement:Measure the diameter, wall thickness, etc. to ensure they meet the standards.
Nondestructive Testing:Adopt nondestructive testing methods like ultrasonic flaw detection and eddy current flaw detection to check for internal defects.
Chemical Composition Analysis:Analyze the chemical composition to verify if the material meets the requirements.
Mechanical Properties Testing:Conduct mechanical properties testing to check if the material quality is up to standard.
Q3: Do you offer customized products?
A: Yes, we can customize seamless stainless steel tubes according to specific customer requirements, including different sizes, materials, and surface.
Q4: Which standards do your products comply with?
A: Our products comply with national standards (GB), international standards (ISO), and industry standards. Some products can also be customized to meet specific customer requirements.
Q5: Do you offer customized products?
A: Yes, we can customize seamless stainless steel tubes according to specific customer requirements, including different sizes, materials, and surface treatments.
Q6: What is the typical delivery time for your products?
A: The delivery time depends on the order quantity and product specifications. Generally, we can deliver within 2 to 4 weeks. The exact delivery time will be confirmed and notified to the customer after the order is placed.

---
