| No. | Item | WT-CCS-550 | WT-CCS-700 |
| 1 | Steel Wire size | 0.8mm~1.80mm(Soft Wire) | 1.60mm~3.0mm(Soft Wire) |
| 2 | Finished Wire | 21% ~ 30% ICAS CCS Wire | 21% ~ 40% ICAS CCS Wire |
| 3 | Speed | 0~80m/min | 0~80m/min |
| 4 | Conduction Drum | Made by SUS316, (D*L): 600*1000mm | Made by SUS316, (D*L): 700*1200mm |
| 5 | Output Capacity | 1000~2000KG/Day | 1000~3000KG/Day |
| 6 | Anode Pole | Titanium Belt, T2 Grade | Titanium Belt, T2 Grade |

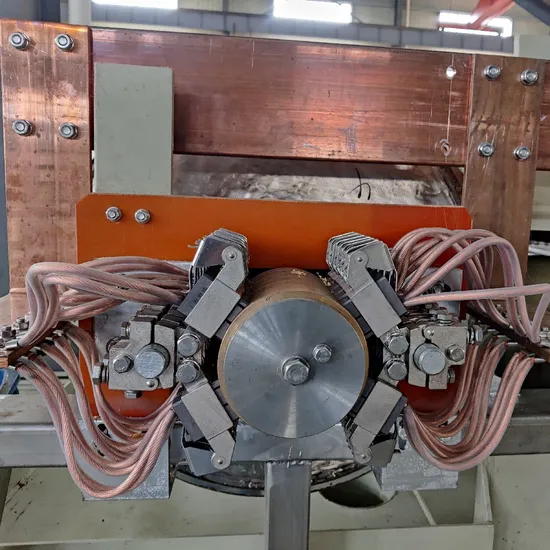

| 7 | Cathode Pole | Copper Busbar with Carbon Brush | Copper Busbar with Carbon Brush |
| 8 | H.F. Rectifier | 2unit 3500A8V | 2unit 5000A10V |
| 9 | Driving Motor | 5.5KW AC | 7.5KW AC |
| 10 | Electric Heater | 12KW | 15KW |
| 11 | Wire Take-up Machine | 25NM Torque Motor | 25NM Torque Motor |
| 12 | Spool & Coil | Coil-600mm, DIN-630-Spool | Coil-600mm, DIN-630-Spool |
| 13 | Weight | 5500KG | 8000KG |
| 14 | Dimension | 25.0m×1.70m×2.0m | 25.0m×1.90m×2.0m |
| 15 | Copper Plating Processing | Wire Pay-off → Alkali Cleaning & Rinse → Pickling Cleaning & Rinse → Foundation Deposit Plating → Staged Rinse → Copper Plating → Staged Rinse → Wire Drying → Wire Take-up Machine |
