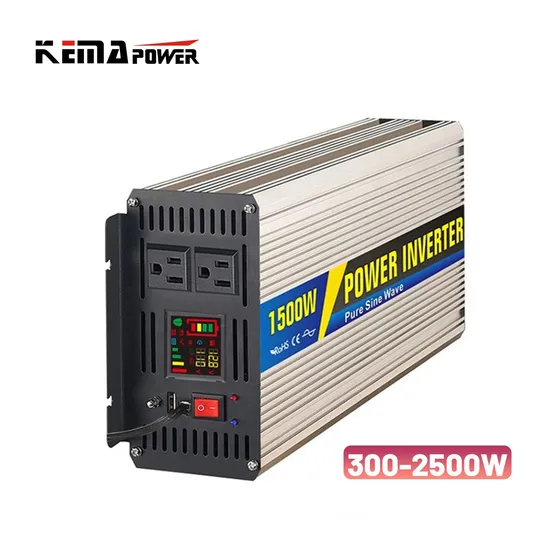

Kemapower 1000 Watts Pure Sine Wave Inverter with UPS Charger Function 12V 24V 48V DC to 110V 220V AC Converter Transformer

Product Description

High Frequency Pure Sine Wave Inverter
CTSW 300-2500
KEY FEATURES High frequency DC/AC Power Inverter CTSW300-2500 Single phase sine wave with USB Charger Output 220V/230V or 110V/120V 50/60HZ Full range protection for output and battery Two times surge capacity for all modes Use as Car inverter / Home inverter / Solar Inverter selectable Socket S03/S05/S11/S12/S13/S14 With Battery Cable Option digital display / Remote control / Frequency switch / GFCI TECHNICAL SPECIFICATIONS

Model	CTSW300	CTSW500	CTSW1000	CTSW1500	CTSW2000	CTSW2500
Rated Power	300W	500W	1000W	1500W	2000W	2500W
Surge Power	Two Tiimes of the Rated Power for few seconds)
Input Voltage	12/24 or 48VDC, Choice while order
Output Voltage	110VAC or 220VAC ±5%
USB Port	5V 0.5A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
DC Voltage Range	10-15.5V@12VDC,Else is times
Low Voltage Alarm	10.5±0.5V@12VDC,Else is times
Low Voltage Shut Down	10±0.5V@12VDC,Else is times
Low Voltage Recovery	13±0.5V@12VDC,Else is times
Over Voltage Shut Down	15.5±0.5V@12VDC,Else is times
Over Voltage Recovery	14.8V±0.5V@12VDC,Else is times
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Product Size(mm)	200*112*60	215*150*78	290*166*88	385*166*88	385*166*88	440*166*88
Carton Size(mm)	545*490*325	760*450*280	480*460*400	495*480*315	495*480*315	555*470*315
Carton Weight (kg)	20	22.34	22.3	19.18	19.78	30.44
PCS /CTN	18	10	6	4	4	4
REMARK	CTSW-D, Digital display D;CTSW-E, Digital display E,CTSW-R, Remote Switch

PRODUCT DISPLAY
(Else Shapes are same .size not same) CTSW1500 DC Side CTSW1500 CTSW1500- E
Digital display and remote control option

---
