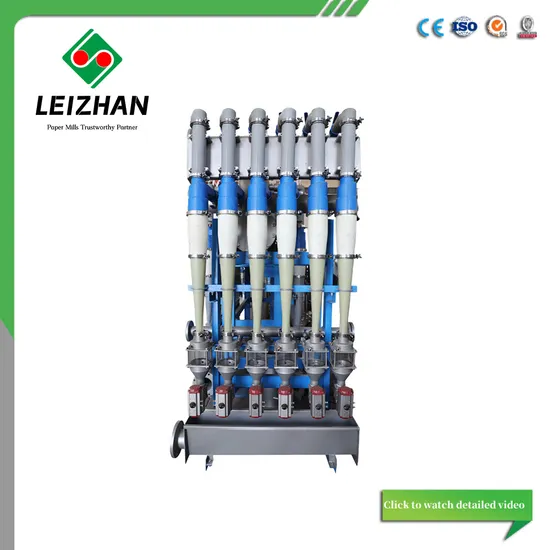

Pulp Cleaning Machine Waste Paper Recycling Pulping Ceramic High Density Cleaner

Product Description

Product Description The cleaner used in the paper industry is mainly divided into high-concentration cleaner, low-concentration cleaner, heavy slag cleaner, and light slag cleaner.
High-concentration cleaner: the pulp concentration is about 4.5%~5.5%, used to remove large and heavy masses (aluminum iron cans, iron plates, stones, glass, etc.).Low-concentration cleaner: the pulp concentration is around 1%, used to discharge fine sand, often used in the paper-making flow system. It is used to treat the slag slurry after coarse sieving, with a concentration of about 2.0%. The processed good pulp is sent to the classification screen for long and short-fiber classification.Light slag cleaners, compared with heavy slag cleaners, cover a wider range and are mainly used for slagging in the post-pulping stage or paper-making flow-feeding slagging.
Detailed Photos
Product Parameters Working principle: Separate waste impurities from fibers by centrifugal force.
When the pulp enters the top of the slag remover from the tangential direction, the slurry flow produces a vortex movement, which accelerates downward along the cone of the slag remover in a spiral shape. The movement of the vortex generates centrifugal force, which causes the impurities heavier than water to move to the inner wall of the slag remover, while those with a relative density less than water move to the core of the vortex.

Model	ZSC-2	ZSC-3	ZSC-4	ZSC-5	ZSC-6	ZSC-7
Capacity: t/d	25-45	60-85	90-120	120-160	160-200	230-380
Consistency: %	2-5
Inlet Pressure (Mpa)	0.15-0.35
Outlet Pressure (Mpa)	0.1-0.25
Recoil water pressure (Mpa)	Inlet pressure plus 0.02 Mpa
Slagging method	Manual / Automatic / Intermittent / Continuous
