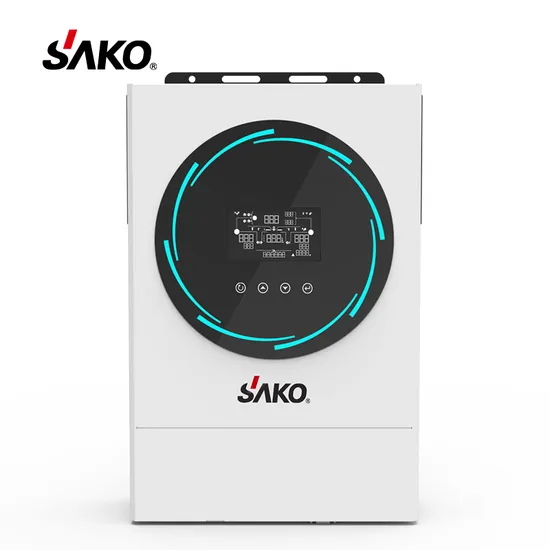

Product Description Cheap Sako Sunpolo 6KW ON Off Grid Hybrid Solar Inverter For Home
SUNPOLO 6KWOn&Off Grid inverter 1. 120A MPPT solar charger inside, max pv input 6kw+ (27A ) 2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
7. On grid and off grid solar inverter, support self-consumption and feed into the grid.
8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc),
support no battery working during the day time. Specification
| Model No. | SUNPOLO 6KW |
| Basical information |
| Max. PV Input Power | 6000W |
| Rated AC Output Power | 6000W |
| Grid-Tie Operation |
| PV Input (DC) |
| Nominal DC Volt/Max DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 120VDC |
| MPPT Voltage Range | 120-450VDC |
| No. of MPPT Tracker/Max. Input Current | 1/27A |
| Grid Output (AC) |
| Nominal Output Volt | 230Vac, Single Phase (dual AC output) |
| Output Voltage Range | 184V-265Vac or 195-253V (Selectable) |
| Nominal Output Current | 26.0A |
| Power Factor | >0.9 |
| Efficiency |
| Max. Conversion Efficiency (DC/AC) | 96% |
| Off-Grid Operation |
| AC Input (AC) |
| AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac |
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac |
| Max. AC Input Current | 40A |
| PV Input (DC) |
| Max. DC Voltage | 500VDC |
| MPPT Voltage Range | 120-450VDC |
| No. of MPPT Tracker/Max. Input Current | 1/27A |
| Grid Tie Mode |
| Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase |
| Feed-in Voltage Range | 184V-265Vac |
| Max Efficiency DC/AC | >95% |
| Battery Mode Output |
| Nominal Output Volt | 220Vac/230Vac/240Vac (dual AC output) |
| DC output | 1pc*12Vdc/10A Max |
| Waveform | Pure sine wave |
| Efficiency(DC to AC) | 93% |
| Hybrid Operation |
| PV Input (DC) |
| Nominal DC Volt/Max DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 120VDC |
| MPPT Voltage Range | 120-450VDC |
| No. of MPPT Tracker/Max. Input Current | 1/27A |
| Grid Output (AC) |
| Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase (dual AC output) |
| Output Voltage Range | 184V-265Vac or 195-253V (Selectable) |
| Nominal Output Current | 26.0A |
| AC Input (AC) |
| AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac |
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac |
| Max. AC Input Current | 40A |
| Battery Mode Output |
| Nominal Output Volt | 220Vac/230Vac/240Vac (dual AC output) |
| DC output | 1pc*12Vdc/10A Max |
| Waveform | Pure sine wave |
| Efficiency(DC to AC) | 93% |
| Battery & Charger |
| Battery Type Supported | Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/LiFePO4 |
| Nominal Battery Voltage | 48Vdc |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Total Charge Current | 120A |
| General |
| Physical |
| Products Dimension,D X W X H (mm) | 456*303*148 |
| Product Net Weight(kgs) | 12 |
| Packing Dimension,D X W X H (mm) | 535mm*382*mm*224mm,1PC/CTN |
| Gross Weight(kgs) | 13.5 |
| Parallel functions Optional | Yes, optional, max 9pcs |
| Communication Interface | RS232,USB,RS485,WIFI |
| Environment |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10ºC to 50ºC |
| Storage Temperature | -15ºC to 60ºC |
| *Product specifications are subject to change without further notice |
