Cheap Price Flat-Top Tower Crane Luffing Jib Tower Crane Boom 50m Tower Crane

Product Description

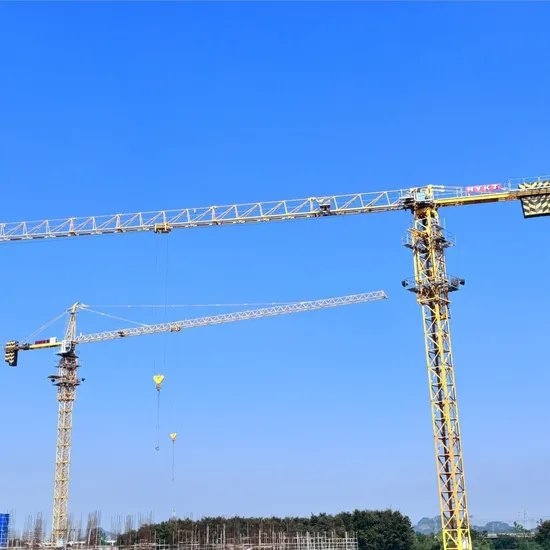

Product Description Features of flat-top tower cranes
Strapless design: ease, speed and safety assembly
Intelligent design: saves in terms of material and assembly times in projects with several overlapping cranes
Long useful life: high-quality, long-lasting materials
Great versatility: numerous crane configurations
Modular design: flat-top crane assemblies that best suit the conditions of each project
Optimized investment: different flat-top cranes share the same structural component
Double trolley: optimizes the load diagram for flat-top cranes
Power lift system: improves the load diagram by 10%
CUBE cab: spacious and comfortable interior with optimal view of the load and the work area

H6015-8 Load Capacity
Arm Length 60m	R(m)	2.5~15.4	17.5	20	22.5	25	27.5	28.2	30	32.5	35	37.5	40	42.5	45	47.5	50	52.5	55	57.5	60
	Q(t)	8.00	6.89	5.91	5.14	4.54	4.04	3.92	3.63	3.29	2.99	2.74	2.52	2.32	2.15	2.00	1.86	1.73	1.62	1.51	1.42
	Q(t)	4.00							3.71	3.37	3.07	2.82	2.60	2.40	2.23	2.08	1.94	1.81	1.70	1.59	1.50
Arm Length 55m	R(m)	2.5~16.6	17.5	00 7	22.5	25	27.5	00	30.5	32.5	35	37.5	40	42.5	45	47.5	50	52.5	55
	Q(t)	8.00	7.55	6.48	5.65	4.99	4.45	4.01	3.92	3.63	3.31	3.04	2.80	2.59	2.40	2.23	2.08	1.94	1.82
	Q(t)	4.00								3.71	3.39	3.12	2.88	2.67	2.48	2.31	2.16	2.02	.90
Arm Length 50m	R(m)	2.5~17.2	17.5	20	22.5	25	27.5	30	31.5	32.5	35	37.5	40	42.5	45	47.5	50
	Q(t)	8.00	7.81	6.71	5.85	5.17	4.62	4.16	3.92	3.77	3.44	3.16	2.91	2.69	2.50	2.33	2.17
	Q(t)	4.00								3.85	3.52	3.24	2.99	2.77	2.58	2.41	2.25
Arm Length 45m	R(m)	2.5~18.3	20	22.5	25	27.5	30	32.5	33.6	35	37.5	40	42.5	45
	Q(t)	8.00	7.22	6.30	5.57	4.98	4.49	4.08	3.92	3.73	3.43	3.16	2.93	2.72
	Q(t)	4.00								3.81	3.51	3.24	3.01	2.80
Arm Length 40m	R(m)	2.5~18.1	20	22.5	25	27.5	30	32.5	33.3	35	37.5	40
	Q(t)	8.00	7.13	6.23	5.51	4.92	4.44	4.03	3.92	3.68	3.38	3.12
	Q(t)	4.00								3.76	3.46	3.20
Arm Length 35m	R(m)	2.5~19.0	20	22.5	25	27.5	30	32.5	35
	Q(t)	8.00	7.56	6.60	5.84	5.23	4.72	4.29	3.92
	Q(t)	4.00
Arm Length 30m	R(m)	2.5~19.1	20	22.5	25	27.5	30
	Q(t)	8.00	7.61	6.65	5.88	5.26	4.75
	Q(t)	4.00

H6018-8 Load Capacity
Arm length (m)	Maximum load(t)	Maximum amplitude(m)	Magnification		Amplitude(m)LloadQ(t)
					12		15			20			25			30			35			40			45			50		55		60
60	4.00	32.0	II		4.00		4.00			4.00			4.00			4.00			3.59			3.05			2.63			2.30		2.03		1.80
	8.00	17.5	IN		8.00		8.00			6.83			5.27			4.25			3.52			2.98			2.56			2.23		1.96		1.73
55	4.00	34.0	II		4.00		4.00			4.00			4.00			4.00			3.87			3.29			2.85			2.49		2.20
	8.00	18.5	N		8.00		8.00			7.33			5.66			4.57			3.80			3.22			2.78			2.42		2.13
50	4.00	35.2	II		4.00			4.00			4.00			4.00			4.00			4.00			3.43			2.97			2.60
	8.00	19.2	IV		8.00			8.00			7.61			5.89			4.76			3.96			3.36			2.90			2.53
45	4.00	35.5	II		4.00			4.00			4.00			4.00			4.00			4.00			3.47			3.00
	8.00	19.3	IN		8.00			8.00			7.68			5.95			4.81			4.00			3.40			2.93
40	4.00	35.8	II		4.00			4.00			4.00			4.00			4.00			4.00			3.50
	8.00	19.5	V		8.00			8.00			7.75			6.00			4.85			4.04			3.43
35	4.00	35	II		4.00			4.00			4.00			4.00			4.00			4.00
	8.00	19.7	IN		8.00			8.00			7.87			6.09			4.93			4.10
30	4.00	30	II		4.00			4.00			4.00			4.00			4.00
	8.00	19.7	IN		8.00			8.00			7.87			6.09			4.93

H6518-10 Load Capacity
Arm length (m)	Maximum load(t)	Maximum amplitude(m)	Magnification	Amplitude(m)LloadQ(t)
				15	20	25	30	35	40	45	50	55	60	65
65	5.00	28.8	|	5.00	5.00	5.00	4.77	3.97	3.38	2.92	2.55	2.26	2.0	1.80
	10.0	15.3	IV	10.0	7.30	5.57	4.47	3.67	3.08	2.62	2.25	.96	1.7	1.50
60	5.00	31.8	I	5.00	5.00	5.00	5.00	4.47	3.82	3.3	2.90	2.57	2.30
	10.0	16.8	IV	10.0	8.20	6.30	5.06	4.17	3.52	3.01	2.60	2.27	2.00
55	5.00	34.0	|	5.00	5.00	5.00	5.00	4.83	4.13	3.59	3.05	2.80
	10.0	18.0	IV	10.0	8.83	6.8	5.48	4.53	3.83	3.29	2.85	2.50
50	5.00	35.3	I	5.00	5.00	5.00	5.00	5.00	4.3	3.75	3.30
	10.0	18.6	IV	10.0	9.2	7.1	5.72	4.74	4.0	3.45	3.00
45	5.00	35.6	|	5.00	5.00	5.00	5.00	5.00	4.37	3.80
	10.0	18.8	IV	10.0	9.33	7.20	5.80	4.81	4.07	3.50
40	5.00	35.2	II	5.00	5.00	5.00	5.00	5.00	4.30
	10.0	18.6	IV	10.0	9.18	7.08	5.70	4.73	4.00
35	5.00	35.0		5.00	5.00	5.00	5.00	5.00
	10.0	18.6		10.0	9.18	7.08	5.70	4.73

H5010-5 Load Capacity
Boom(m)	Magnification	Lifting amplitude(m)	2.5~15.0	17.5	20	22.5	25	28.5	32.5	35	37.5	40	42.5	45	47.5	50
50	II	Lifting capacity(t)	2.50						1.85	1.75	1.65	1.45	1.35	1.25	1.05	0.85
	IV		5.00	4.25	3.80	3.35	2.75	2.65	2.00	1.90	1.80	1.70	1.60	1.40	1.20	1.00
Boom(m)	Magnification	Lifting amplitude(m)	2.5~16.0	20	22.5	25	27.5	30	30.8	35	37.5	40	42.5	45
45	II	Lifting capacity(t)	2.50							2.05	1.95	1.60	1.45	1.25
	IV		5.00	3.80	3.50	3.00	2.85	2.70	2.65	2.20	2.10	1.85	1.60	1.40
Boom(m)	Magnification	Lifting amplitude(m)	2.5~16.4	20	22.5	25	27.5	30	31.6	35	37.5	40
40	II	Lifting amplitude(t)	5.00							2.05	1.90	1.75
	IV		5.00	3.90	3.50	3.00	2.85	2.70	2.65	2.20	2.05	1.90
Boom(m)	Magnification	Lifting amplitude(m)	2.5~16.4	20	22.5	25	27.5	30	32.5	35
35	II	Lifting capacity(t)	2.50						2.35	2.05
	IV		5.00	4.80	4.50	3.90	3.30	2.65	2.50	2.20
Boom(m)	Magnification	Lifting amplitude(m)	2.5~19.1	20	22.5	25	27.5	30
30	II	Lifting capacity(t)	2.50
	IV		5.00	4.80	4.50	3.90	3.30	2.65

H5013-5 Load Capacity
Boom(m)	Magnification	Lifting amplitude(m)	2.5~17.6	20	22.5	25	27.5	31.5	32.5	35	37.5	40	42.5	45	47.5	50
50	II	capacity(t)	2.50						2.40	2.18	1.98	1.81	1.66	1.53	1.41	1.30
	IV		5.00	4.28	3.68	3.22	2.84	2.35	2.25	2.03	1.83	1.66	1.51	1.38	1.26	1.15
Boom(m)	Magnification	Lifting amplitude(m)	2.5~18.9	20	22.5	25	27.5	30	33.9	35	37.5	40	42.5	45
45	II	capacity(t)	2.50							2.40	2.19	2.01	1.84	1.70
	IV		5.00	4.68	4.04	3.53	3.12	2.78	2.35	2.25	2.04	1.86	1.69	1.55
Boom(m)	Magnification	Lifting amplitude(m)	2.5~20.2	22.5	25	27.5	30	32.5	35	36.3	37.5	40
40	II	capacity(t)	2.50								2.40	2.20
	IV		5.00	4.39	3.85	3.41	3.04	2.74	2.47	2.35	2.25	2.05
Boom(m)	Magnification	Lifting amplitude(m)	2.5~20.3	22.5	25	27.5	30	32.5	35
35	II	capacity(t)	2.50
	IV		5.00	4.43	3.88	3.44	3.07	2.76	2.50
Boom(m)	Magnification	Lifting amplitude(m)	2.5~20.5	22.5	25	27.5	30
30	II	capacity(t)	2.50
	IV		5.00	4.47	3.92	3.47	3.10

H6013-6 Load Capacity
Arm length 60m	R(m)	2.5~18.2	20	22.5	25	27.5	30	32.8	35	37.5	40	42.5	45	47.5	50	52.5	55	57.5	60
	Q(t)	6.00	5.39	4.68	4.11	3.65	3.27	2.92	2.68	2.45	2.24	2.06	1.90	1.76	1.63	1.51	1.40	1.31	1.22
	Q(t)	3.00							2.76	2.53	2.32	2.14	1.98	1.84	1.71	1.59	1.48	1.39	1.3
Arm length 55m	R(m)	2.5~20	22.5	25	27.5	30	32.5	35	36	37.5	40	42.5	45	47.5	50	52.5	55
	Q(t)	6.00	5.21	4.60	4.09	3.67	3.32	3.02	2.92	2.76	2.54	2.34	2.16	2.01	1.86	1.74	1.62
	Q(t)	3.00								2.84	2.62	2.42	2.24	2.09	1.94	1.82	1.70
Arm length 50m	R(m)	2.5~21.1	22.5	25	27.5	30	32.5	35	37.5	38	40	42.5	45	47.5	50
	Q(t)	6.00	5.57	4.91	4.38	3.94	3.57	3.25	2.97	2.92	2.73	2.52	2.34	2.17	2.02
	Q(t)	3.00									2.81	2.60	2.42	2.25	2.10
Arm length 45m	R(m)	2.5~21.6	22.5	25	27.5	30	32.5	35	37.5	39	40	42.5	45
	Q(t)	6.00	5.74	5.06	4.52	4.06	3.68	3.36	3.07	2.92	2.83	2.61	2.42
	Q(t)	3.00									2.91	2.69	2.50
Arm length 40m	R(m)	2.5~22.2	22.5	25	27.5	30	32.5	35	37.5	40
	Q(t)	6.00	5.9	5.21	4.65	4.19	3.8	3.46	3.17	2.92
	Q(t)	3.00
Arm length 35m	R(m)	2.5~22.4	22.5	25	27.5	30	32.5	35
	Q(t)	6.00	5.97	5.27	4.70	4.23	3.84	3.50
	Q(t)	3.00
Arm length 30m	R(m)	2.5~22.7	25	27.5	30
	Q(t)	6.00	5.35	4.78	4.3
	Q(t)	3.00

H7530-20 Load Capacity
Boom(m)	Magnification	amplitude(m)	4.0~15.2	17.5	20.0	22.5	25.0	27.5	28.7	30.0	32.5	35.0	37.5	40.0	42.5	45.0	47.5	50.0	52.5	55.0	57.5	60.0	62.5	65.0	67.5	70.0	72.5	75.0
75	II	capacity(t)	10.00							9.49	8.64	7.91	7.29	6.74	6.27	5.84	5.46	5.13	4.82	4.54	4.29	4.06	3.85	3.65	3.47	3.30	3.15	3.00
	IV		20.00	16.89	14.38	12.45	10.93	9.71	9.20	8.69	7.84	7.11	6.49	5.94	5.47	5.04	4.66	4.33	4.02	3.74	3.49	3.26	3.05	2.85	2.67	2.50	2.35	2.20
Boom(m)	Magnification	amplitude(m)	4.0~15.8	17.5	20.0	22.5	25.0	27.5	29.9	30.0	32.5	35.0	37.5	40.0	42.5	45.0	47.5	50.0	52.5	55.0	57.5	60.0	62.5	65.0	67.5	70.0
70	II	capacity(t)	10.00							9.97	9.08	8.32	7.67	7.10	6.60	6.15	5.76	5.41	5.09	4.80	4.53	4.29	4.07	3.86	3.68	3.50
	IV		20.00	17.74	15.11	13.10	11.51	10.23	9.20	9.17	8.28	7.52	6.87	6.30	5.80	5.35	4.96	4.61	4.29	4.00	3.73	3.49	3.27	3.06	2.88	2.70
Boom(m)	Magnification	amplitude(m)	4.0~16.5	17.5	20.0	22.5	25.0	27.5	30.0	31.2	32.5	35.0	37.5	40.0	42.5	45.0	47.5	50.0	52.5	55.0	57.5	60.0	62.5	65.0
65	II	capacity(t)	10.00								9.56	8.76	8.08	7.49	6.96	6.50	6.08	5.71	5.38	5.08	4.80	4.55	4.31	4.10
	IV		20.00	18.66	15.91	13.80	2.14	0.80	9.69	9.20	8.76	7.96	7.28	6.69	6.16	5.70	5.28	4.91	4.58	4.28	4.00	3.75	3.51	3.30
Boom(m)	Magnification	amplitude(m)	4.0~17.1	17.5	20.0	22.5	25.0	27.5	30.0	32.5	32.6	35.0	37.5	40.0	42.5	45.0	47.5	50.0	52.5	55.0	57.5	60.0
60	II	capacity(t)	10.00									9.21	8.49	7.87	7.32	6.84	6.41	6.02	5.67	5.35	5.06	4.80
	IV		20.00	19.58	16.71	14.51	12.77	1.37	10.21	9.24	9.20	8.41	7.69	7.07	6.52	6.04	5.61	5.22	4.87	4.55	4.26	4.00
Boom(m)	Magnification	amplitude(m)	4.0~17.5	20.0	22.5	25.0	27.5	30.0	32.5	33.3	35.0	37.5	40.0	42.5	45.0	47.5	50.0	52.5	55.0
55	II	capacity(t)	10.00								9.44	8.71	8.07	7.51	7.02	6.58	6.18	5.82	5.50
	IV		20.00	17.13	14.88	13.11	11.67	10.48	9.49	9.20	8.64	7.91	7.27	6.71	6.22	5.78	5.38	5.02	4.70
Boom(m)	Magnification	amplitude(m)	4.0~17.8	20.0	22.5	25.0	27.5	30.0	32.5	33.8	35.0	37.5	40.0	42.5	45.0	47.5	50.0
50	I	capacity(t)	10.00								9.61	8.87	8.22	7.65	7.15	6.70	6.30
	IV		20.00	17.44	15.15	13.35	11.89	10.68	9.67	9.20	8.81	8.07	7.42	6.85	6.35	5.90	5.50
Boom(m)	Magnification	amplitude(m)	4.0~18.1	20.0	22.5	25.0	27.5	30.0	32.5	34.4	35.0	37.5	40.0	42.5	45.0
45	II	capacity(t)	10.00								9.80	9.05	8.39	7.81	7.30
	IV		20.00	17.78	15.46	13.62	12.14	10.91	9.88	9.20	9.00	8.25	7.59	7.01	6.50
Boom(m)	Magnification	Lifting amplitude(m)	4.0~18.3	20.0	22.5	25.0	27.5	30.0	32.5	34.8	35.0	37.5	40.0
40	I	capacity(t)	10.00								9.93	9.17	8.50
	IV		20.00	18.01	15.66	13.80	12.30	11.06	10.02	9.20	9.13	8.37	7.70

H7022-12 Load Capacity
Arm length 70m	R(m)	3.0~18.4	20	25	30	33.3	35	40	45	50	55	60	65	70
	Q(t)	12.00	10.91	8.36	6.69	5.88	5.52	4.65	3.97	3.44	3.01	2.64	2.34	2.08
	Q(t)	6.00					5.64	4.77	4.09	3.56	3.13	2.76	2.46	2.20
Arm length 65m	R(m)	3.0~19.6	20	25	30	35	35.4	40	45	50	55	60	65
	Q(t)	12.00	11.72	9.00	7.22	5.97	5.88	5.04	4.32	3.75	3.29	2.90	2.58
	Q(t)	6.00						5.16	4.44	3.87	3.41	3.02	2.70
Arm length 60m	R(m)	3.0~20.3	25	30	35	36.9	40	45	50	55	60
	Q(t)	12.00	9.43	7.58	6.28	5.88	5.31	4.56	3.97	3.48	3.08
	Q(t)	6.00					5.43	4.68	4.09	3.60	3.20
Arm length 55m	R(m)	3.0~20.7	25	30	35	37.6	40	45	50	55
	Q(t)	12.00	9.66	7.76	6.43	5.88	5.44	4.68	4.07	3.58
	Q(t)	6.00					5.56	4.80	4.19	3.70
Arm length 50m	R(m)	3.0~21.1	25	30	35	38.3	40	45	50
	Q(t)	12.00	9.87	7.94	6.59	5.88	5.58	4.80	4.18
	Q(t)	6.00					5.70	4.92	4.30
Arm length 45m	R(m)	3.0~21.4	25	30	35	38.8	40	45
	Q(t)	12.00	10.02	8.07	6.69	5.88	5.68	4.88
Arm length 40m	Q(t)	6.00					5.80	5.00

Advantages Of Tower Crane:
1. It has a wide range of adaptability and meets the needs of high-rise and multi-story civil building construction in small, large, and medium-sized cities. It can be used for the construction of multi-story and large-span industrial factories, as well as tower-shaped buildings such as tall chimneys and silos that use sliding formwork construction. It can also be used for loading and unloading operations in ports and freight yards.
2. Easy to install and disassemble, hydraulic lifting device is used to increase or reduce the standard section of the tower body, so that the lifting height of the tower crane can adapt to changes in building height.
3. High working speed, good speed regulation performance, stable operation, and high efficiency. The lifting mechanism basically achieves heavy load, low speed, and light load, high speed.
4. The safety protection devices are complete, sensitive and reliable.
5. The driver's cab is independent and external, and uses a linkage console to control various mechanisms, which is spacious, comfortable, safe, easy to operate, and has a good view.

Company Profile

ZHEJIANG DEQING HUAYANG TECHNOLOGY CO., LTD., located in Deqing Economic and Technological Development Zone at the south foot of Mount Mogan, a national key scenic spot, in the center of the Shanghai Nanjing Hangzhou Golden Triangle, was founded in 2004. It is a key scientific and technological backbone enterprise producing Tower crane and elevators. It has a site of 50 mu and 200 employees.
The company was recognized as a national high-tech enterprise in 2021, with a municipal level high enterprise research and development center, a research and development site of 2900 square meters.

The company's leading products are a series of construction machinery products such as Tower crane and construction elevators. Equipment and raw materials are powerful guarantees for product quality.
The company has introduced advanced machine processing equipment, raw material pretreatment production lines, full-automatic welding production lines.The overall automatic shot blasting coating line and more than 100 sets of various mechanical equipment (flame cutting machine, plasma cutting machine, CNC lathe, shot blasting machine, folding machine, gantry machining center, Robot welding, etc.) ensure the product quality from the process.
With excellent performance, reliable quality, and perfect after-sales service, are highly favored by domestic and foreign users. With strong technical strength, complete process equipment, advanced testing methods, and strict management systems, It has become one of the main manufacturers of backbone construction machinery products in Zhejiang Province.
At present, the company's products have four series and dozens of different specifications and models. Tower cranes developed and produced by the company: Multiple series flat-top tower cranes; Multiple series boom tower cranes; Multiple series roof tower cranes and SC200/200 construction elevators. The product has advanced technical parameters, reliable performance, beautiful appearance, reasonable structure, and excellent quality. It has the outstanding advantages of simplicity, practicality, and reasonable price, and can also meet the construction requirements of high-rise housing and high-rise industrial buildings.
At the same time, the company has established strategic partnerships and supporting supply chain relationships with dozens of first-class enterprises, ensuring the first-class quality of products from raw materials and accessories. At the same time, the company's "Qinghe" and "Huayang" construction machinery, with excellent performance, reliable quality, and perfect after-sales service, are highly favored by domestic and foreign users. With strong technical strength, complete process equipment, advanced testing methods, and strict management systems, It has become one of the main manufacturers of backbone construction machinery products in Zhejiang Province. Why Choose Us
Workshop
Professional Team
Customers Case
In recent years, we exported tower cranes to many countries. Our customers are from Saudi Arabia, Australia,Philippines, Dubai, Malaysia, Mexico, etc. Choose us, it will be your best choice.
Packaging & Shipping FAQ

---

>> Fully Automatic PLC Control Customized Weighing Automatic Batching System
>> IACS Approved 100 Persons FRP Totally Enclosed Lifeboat
>> High efficiency recycled glass bottle washing machine
>> SMC BMC Fiberglass Resin Composite FRP Manhole Cover
>> Kyy Yg Slider Punching Machine, Zipper Making Machine
>> Pulp Refiner Machine High Consistency Refiner for Paper Mill
>> Wireless Foldable Keyboard Touchpad Rechargeable for Tablet Notebook Ios Android Windows Phone
>> New Style Nylon Spandex Black Tank Top Fitness Gym Tank Top Women's Breathable quick drying tan tops
>> Large Heavy Duty Sliding Patio Doors /Aluminium Sliding Glass Doors Exterior living room
>> Fireproof MGO board
>> ML L H MH carbon fiberglass prawn ice fishing rod 55cm 70cm 80cm 100cm 120cm 150cm 180cm shrimp rod
>> All Brands Cars Auto Parts Front Rear Suspension Auto Air Shock Absorber Factory for Toyota Corolla D-Max Mitsubishi Pajero Nissan Honda Civic Mazda
>> CNC Milling Center High Precision Hsk50A Hsk63A Hsk100A Fmb Face Mill Holder CNC Tool Holder
>> Φ30.6X9.1 Special-Shaped Hole Normal Hole Puncher For Plastic,PVC.PP Packaging Bags
>> Combine Harvester 4lz-6.0 for Rice, Wheat, Soybean, Corn
>> 2021 2022 Model 3 Sr+ Yellow Fog Lights For Tesla Model 3 Standard Range Plus Model Y Front Led Fog Light With Turn Signal
>> Polyurethane Automotive Windshield Adhesive Making Machine Planetary Mixer Trolley Dual Shaft Mixer (Hydraulic Lifting)
>> Portable folding solar power bank 20000mAh with built-in three wire 2A 10W ultra large capacity wireless charging mobile power supply
>> Vm-1580 Mingju CNC Machine Machining Center with 1600X800 mm Worktable
>> Multi Functional Carboard Tube Cutting Machine Paper Core Cutter
