Bottles Milk Bottles Blow Molding Machine

Product Description

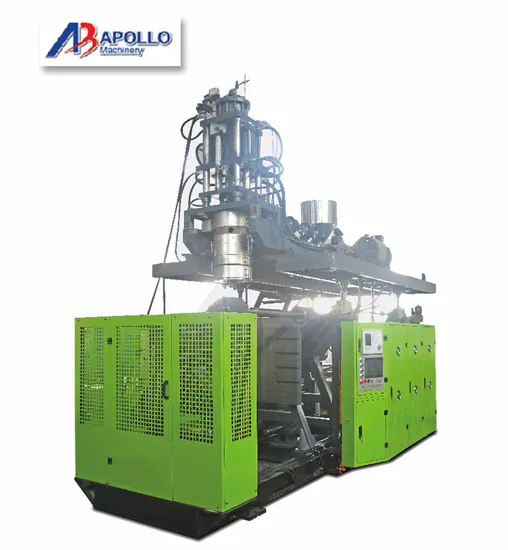

Automatic bottle making machine
Model No.: ABLB75(Double station single die head)
ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 8L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Technical Parameters: ( ABLB75II)

Name			Units	ABLB75II
Max.product volume			L	8
Dry cycle			PC/H	800×2
Screw diameter			MM	75
Screw L/D ratio			L/D	24
Screw drive power			KW	22
Screw heating capacity			KW	7
No. of heating zone			ZONE	4
Output of HDPE			KG/H	100
Oil pump drive power			KW	7.5
Clamping force			KN	80
Max.size of mold			MM	400×420
Template size			MM	380×420
Mold stroke			MM	170-520
Max. die diameter			MM	170
Blowing pressure			MPA	0.6
Air volume			M3/MIN	0.8
Cooling water pressure			MPA	0.3
Water consumption			L/MIN	80
Size of machine			L×W×H	4.4×2.2×2.7
Weight of machine			TON	8

The Main Component of this machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

---
