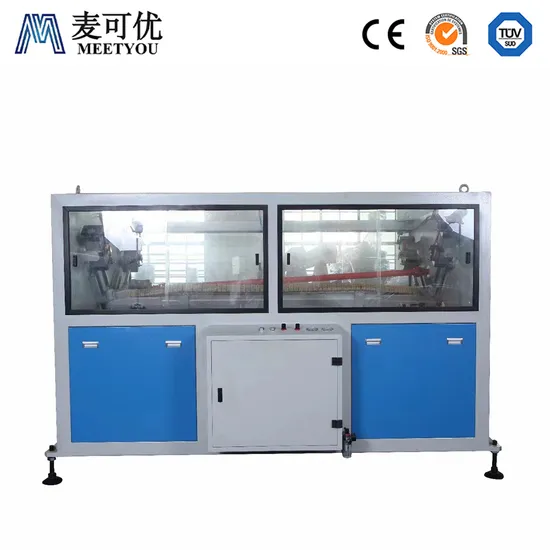

Meetyou Machinery Fosita Professional Manufacturer 16-110mm Electric Plastic PVC Double Pipe Making Machine

Product Description

Zhangjiagang Meetyou Machinery Co., Ltd.

Factory Add: Leyu Economical Park, Suzhou, Jiangsu, China
Zhangjiagang MEETYOU Machinery Co., Ltd is located in the national civilized city---Zhangjiagang, which belongs to Suzhou city of Jiangsu Province; It′ S near the golden waterway of the Yangtze River, only 2-3 hours from Shanghai deep-water port and Pudong airport, and 1 hour from Wuxi city and Changzhou city by car.
MEETYOU Machinery is a leading supplier of plastic extrusion and recycling equipment.
We mainly offer kinds of PVC/PP/PE/ABS/PC extrusion lines for pipes, profiles, granules, sheets/boards, roof tiles, and recycling machines for pipes, profiles, film, woven bags, bottles, tires, net, etc.
Besides, we also offer the assistant machines, like Mixer, Crusher, Pulverizer, pipe Belling Machine, Auto Loader, Hopper Dryer, Water Chiller, words Printer, etc. Product Description
- PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge systems, architectural water supply & discharge systems, wire laying systems, etc. purposes.
- The unit consists of a Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
- the line can be equipped with a Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
- Process Flow: Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing

Product Parameters
MEETYOU MACHINERY Fosita Professional Manufacturer 16-110Mm Electric Plastic PVC Double Pipe Making Machine

Product Paramenters

Diameter ranges(mm)	Extruder model	Max. Capacity(kg/h)	Max. lineal speed(m/min)	Extruder motor power(kw)
16-32 (4-cavities)	ACE65/132	300	10*4	37
20-63 (Dual)	ACE65/132	300	15*2	37
50-160	ACE65/132	300	8	37
75-250	ACE80/156	500	6	55
110-315	ACE80/156	500	4	55
75-160 (Dual)	ACE92/188	850	6	110
315-630	ACE92/188	850	1.2	110

Technical Parameter of Main Extruder
Model	Power (kW)	Screw Diameter (mm)	Screw Qty.	Designed Output (kg/h)	Dimension(L*W*H) (mm)
ACE-45/90	15	Φ45/90	2	70	3360x1290x2127
ACE-51/105	18.5	Φ51/105	2	100	3360x1290x2127
ACE-55/110	22	Φ55/110	2	150	3620x1050x2157
ACE-65/132	37	Φ65/132	2	300	3715x1520x2450
ACE-80/156	55	Φ80/156	2	400	4750x1550x2460
ACE-92/188	110	Φ92/188	2	750	6725x1550x2814

Detailed Photos
FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
- MEETYOU MECHINERY is original manufacturer.
- If you interested in our products and we can fulfill your request , you may pay a visit to MEETYOU MACHINERY Factory.
- The meaning of visiting supplier, since seeing is believing, MEETYOU MACHINERY with its own manufacture and developed& research team, we can send you engineers and make sure the high-efficiency after-sales service.
SEE MEETYOU MACHINE HOW TO ENSURE THE QUALITY
- In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
- Each component before assembly needs strict control by inspecting personnel.
- Each assembly is in charge of a master who has working experience for more than 15 years
- After all the equipment is completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in the customers' factory
THE AFTER-SALE SERVICE OF MEETYOU MACHINERY
- After finishing the production, we will debug the production line, take photos, and videos and send them to customers via mail or instant tools.
- After the commissioning, we will package the equipment by the standard export package for shipment.
- According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
- Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

---
