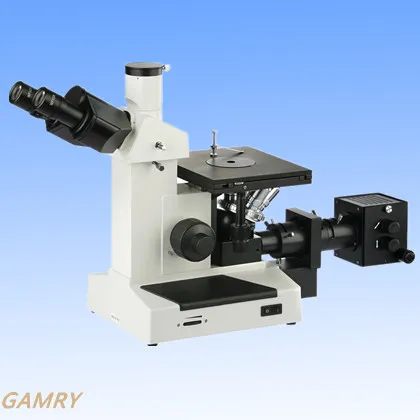

High Quality Inverted Metallurgical Microscope Mlm-17at

US$701.00
1-9 Pieces
US$680.00
10-49 Pieces
US$660.00
50+ Pieces

Basic Info.

Model NO.
MLM-17AT
Type
Metallographic
Number of Cylinder
≥Three
Mobility
Portable
Stereoscopic Effect
Without Stereoscopic Effect
Shape
Rectangular Prism
Usage
Research
Principle
Optics
Function
Metallurgical Microscope
Feature
Inverted Microscope
Gross Weight
11kg
Net Weight
10kg
Transport Package
Foamed in Paper Box
Trademark
OEM
Origin
China
HS Code
901180009
Production Capacity
100pieces/Month

Packaging & Delivery

Package Size
39.00cm * 30.00cm * 44.00cm
Package Gross Weight
11.000kg

Product Description

1.Introduction
MLM-17AT series metallurgical microscopes are used for identification and analysis of the structures in different metals and alloys. They are the important instruments for researching metallography in metal physics. The instruments can select special photography device to take euploid pictures of atlas metallograph. The instruments are suitable for scientific research, colleges and factory.
2.Standard Configuration:
Eyepiece Wide field WF10X/Φ18mm
Plan achromatic objective PL 10X/0.25
PL L20X/0.40 (Spring)
PL L40X/0.60 (Spring)
PL 100X/1.25 (oil)(Spring)
Eyepieces tube Inclination 30° and interpupillary distance:53-75mm
Focus system Coaxial coarse/fine focus system with tension adjustable and limit stopper, the minimum division of fine focusing is 2μm
Nosepiece Quadruple Backward ball bearing inner locating
Stage mechanical stage, 180mmX150mm, moving range: 15mmX15mm
Rotundity and rotatable stage size: measurement: Φ67.5mm and minimal clear aperture:Φ12mm
illumination system 6V20W, halogen lamp, adjustable brightness
Integrated field, aperture diaphragm
Equipped with flashboard frosted glass and yellow, green and blue filters
Optional Accessory Eyepiece 10X Dividing eyepiece (field number Φ18mm)
Objective 50X, 60X, 80X,100X(Dry)
CCD adapter 0.5X,1X,0.5X(with dividing)
Polarizing device Flashboard polarizer can be rotated from 0°-90°
Puller analyzer can be switched freely.
Camera USB output:1.3M/3.0M/5.0M/10.0M pixel
VIDEO output:520TV Line
Digital camera adapter CANON(EF) NIKON(F)

3.Product Photos and Component Introduction:
