Product Details
Product Description
Product Description

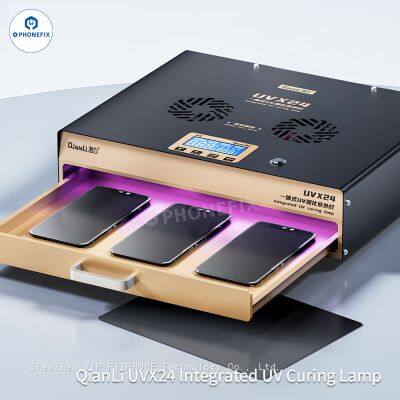

QianLi UVX24 integrated UV curing lamp 16-inch large area light box with 50 365/395 dual-wavelength UV LED chips suitable for various sizes screens of iPhone, mobile phones, iPads and tablets. QianLi UVX24 UV curing box screen refurbishment tool for curved/flat screen and OCA screen glass lamination.
Features:
1. Qianli UVX24 integrated UV curing lamp, powerful light source, fast curing speed, with 16-inch big curing room, two cooling fans, and 50 dual-wavelength LED chips to improve efficiency.
2. Specially equipped dual-wavelength curing, powerful light source of the lamp tube, slow temperature rise of the surface of the irradiated product during irradiation, reducing heat damage, stable UV light output, and uniform irradiation.
3. Light energy 3200mJ/cm², no heat radiation, safe and secure, 50 dual-wavelength LED chips, 365/395 LED chips mixed to enhance the curing effect.
4. Dual-fan heat dissipation design, rapid heat dissipation, increased service life; drawer-type design, small product space occupation, larger available space.
5. Screen glass/LCD screen both can be cured, suitable for curved/flat screen/OCA screen glass lamination,wrinkle-free LCD curing, etc.
6. Can cure multiple phones at the same time, the size is suitable for screens of various sizes, and can accommodate 6 commonly used mobile phone models at the same time.
7. Adjustable curing time, choose different curing time for different needs.
8. The aluminum alloy body is sturdy and durable, increasing its service life; the special golden drawer-style handle is easy to pull out; the non-slip foot pad design makes the product more stable.
Steps:
1. Apply UV curing glue to the screen to be repaired.
2. Then attach the mobile phone screen glass to the screen.
3. Different screens require different UV exposure time for repair.
4. The screen can be taken out once the curing is complete.
Product Parameters:
Name: QianLi UVX24 Integrated UV Curing Lamp.
Type of LED chips: 50 365/395 dual wavelength UV LED chips are mixed arrangement.
Light energy: 3200mj/cm².
Functions: UV Curing.
Product weight: 4.3kg.
Package weight: 5.15kg.
Product size: 350*300*93mm.
Package size: 430*370* 180mm.
Curing room size: 320*240* 14.5mm.
Package includes:
1 x Light Box.
1 x Power Cable.
>>
