Horizon type oil filling machine liquid filling machine paste filling machine

Product Description

Product Description

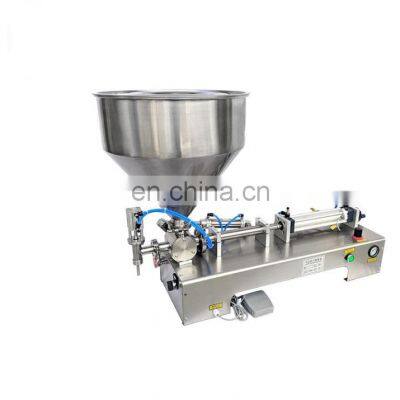

Horizon type oil filling machine liquid filling machine paste filling machineThe machine uses a piston push rod structure, resulting in a strong push pull work from the main cylinder to drive the piston head, pull back when the main cylinder when the piston head, the inlet valve opens, a gate valve is closed: Due material cylinder inside and outside the presence of pressure, the material will be sucked into the feed tank, this is the suction stroke, the suction stroke is completed, the master cylinder will push out the piston head, the inlet valve is closed at this time, a gate valve is opened, the material is Release material cylinder piston head, through the filling spout to the container, this is the filling stroke. The entire filling process includes: 1 air discharge hopper feed 2 3 4 suction cylinder filling material discharge.Specification:Model: JXF-2Two head Capacity: 30 bottles/minuteFilling weight:0-2000 mlDiemension: 1000mm*540mm*700mmMachine photoes:

---
