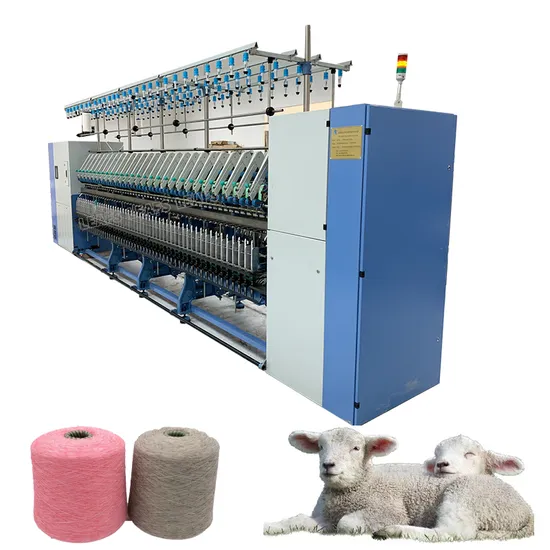

Source Cotton Wool Yarn Making Machine Woolen Ring Spinning Frame Machinery for Fiber Mills and Textile Laboratories

Product Description

Product Description
This machine is suitable for the pure spinning or mixed spinning of wool ,synthetic,blend,silk ,blend(average length of 65-100mm ,the longest spinnable fiber coule be 220mmwhen using sliding draft). It feeds low twist or twistless roving to go through the procedures of stretching, twisting and rolling before becoming a single wool thread with a certain Nm for weaving or knitting.
The highest speed of spindle up to 13000 r/min, electrical control system adopts PLC control technology and AC servo control technology, which can make the equipment run steadily and reliably.
Product Parameters

Spindle Gauge	75mm
No.of spindles	From 108 to 480 ( 12 spindles/section)396 Spindles is recomended.
Ring Diameter	Φ48*11.2(semi-worsted spinning)
Yarn Count	8.3-50tex(20-120Nm) Normal supply 25-12.5Tex(40-80Nm)
Twisting	200-1260 (T/m)No limitation
Spindle Speed	Operating speed of empty spindle is up to 13000 (rpm)
Spindle driving	Double tape tension pulleys
Spindle	D2313
Draft Ratio	Total draft:10-45
Spindle wharve dia overall dimensions	Φ24mm
Bobbin Length	260mm
Twist Direction	Z or S
Draft System	3 line rollers,double aprons(long and short),pendulum arm weighting with 6 spindles
Compacting System	4 line rollers,lattice apron with 6 spindles/section,double aprons(long and short)
Spindle	Aluminum type
Roving Creel	Φ200x200mm Double yarn without twist. Φ140*410mm Single yarn with weak twist.
Main Motor Power	7.5KW(for 396 spindles)

Features
Details
1.Headstock Transmission
Spindle and headstock are driven by synchronous belt for avoiding noise. Twist, main drafting, wind change gear are designed with same modules, bore diameter and width, which can be in common use one another. In addition, headstock adopt fully closed oil bath headstock, tailstock adopt tooth face automatic oil drip the driving transmission is electronic driving.the front roller is driven by motor;middle and bottom roller is controled by frequenoy conversi on and PLC. this can ensure the synchronous accuracy.
2.Winding System
Spindle is the type of damping vibration absorption, which can be loaded with brake spindle device, adds balloon ring thread-guide plate, which is helpful to control the yarn's tension because of the separated movement of balloon lift and drop against ring plate. Excellent center accuracy between the ring to the spindle. Lift and drop movement structure of yarn guide plate, balloon ring and ring plate are balanced by heavy punch. In addition, rising and lowering of ring rail can adopt mechanical type or electric type.
3.Suction system
Every spinning frame has itinerated cleaning device, this can select suitable blowtorch components and blowpipe height according to spinning frame type, spinning frame type, spinning technology and requirement, spinning environment and characteristics of cleaning of device, it can effectively improve the yarn quality.
Headstock Transmission Windings System Circuious Blowing Suction Device.
4.Draft Transmission
Adopts three rollers, double aprons drafting; compact spinning system adopts four rollers drafting with lattice aprons, adopt wool spinning leaf-spring pendulum arms.The broken yarn can be adsorbed into single branch pipe, the pipe is close to the bottom roller; with large suction entrance, the absorbing rate is higher for cleaning the surface of bottom roller.
5.Electric Control
All the electrical element of electrical system, such as programmable controller and transducer, all select and use world-famous brands and can realize synchronous control between electrical machines.Adopt colorized touch screen as instellective interface. Technological parameters can realize speedy,simple and optimized setting on screen, which is convenient for craft management.
6.Spindle Transmission
We adopt double tension pulley and single-motor transmission(four-spindle type),we can choose S-type or Z-type twisting type by changing the main motor turning direction. This can reduce the uneven rate of spindle speed,Adjust the speed by frequency conversion
Draft Transmission Electric Control Spindle Transmission
Wool Compact Spinning System Roller without Mechanical Wave Wool Leaf Spring Pendulum Arm
7.Compact Spinning Instrument
We apply optimized machine spinning section and reasonable spinning angle, weak twistin ng area is small, so the twist delivery is good and spinning tension diversity is small, which can greatly reduce end breakage rate. Equip ped with four-roller negative-pressure compact spinning instrument, with same craft, 3mm hairiness reduces 70%,mightiness increase es 10%,CV improves about 0.2. enhance fiber materical capacity, decreases the twist rate about 10%, broken yarn rate reduces about 600%, and loss of fiber reduces about 0.01%,and flyings reduces greatly.
Interntional advanced inspection instrument.
Leafs Company devotes itself to control and improvement of products'quality, spent more investment importing international advanced testing and inspection instruments for researching and development of new products and daily inspection of ordinary products.
Optional

Compact spinning system. Computerized type,all controlled by servo motors
Production process

Company Profile

We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered.
FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.

Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

---
