Water Tank Wet Drawing Machine Use for Fine Binding Wire

Product Description

Machine Introduction

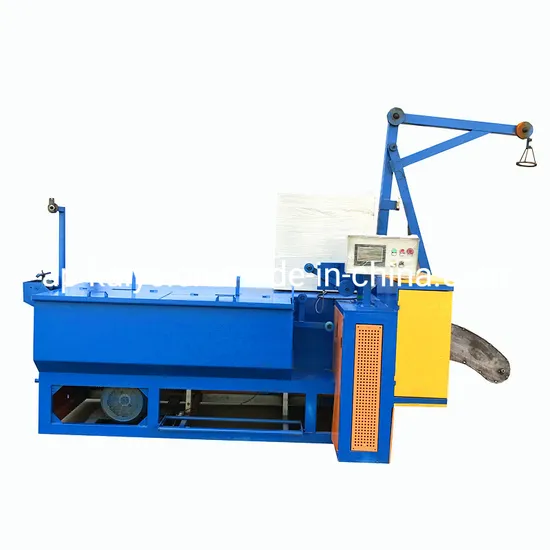

Water tank wet drawing machine
The water tank type wire drawing machine has heavy water tank and turnover water tank. It is suitable for drawing various metal wires of medium and fine specifications, especially high, medium and low carbon steel wire, galvanized iron wire, bead steel wire, rubber hose steel wire, steel cord, copper wire, aluminum wire, etc. Water tank type wire drawing machine is a small continuous production equipment composed of multiple drawing heads. Through step-by-step drawing, the drawing head is placed in the water tank, and finally the steel wire is pulled to the required specification. The whole wire drawing process is completely controlled by the mechanical speed difference between the main shaft of the drawing machine and the lower shaft of the drawing machine.

Machine Specification

Incoming wire diameter	2.0-2.2 mm
outgoing wire diameter	0.35-0.7 mm
Max speed	900 m/min
Number of drawing molds	16
Capstan	Alloy
Main motor	22 kw
Wire Take-up motor	4 kw
Wire Take-up mode	Trunk type
Power control	Frequency conversion control
Tension control	Swing arm

Mechanical Advantage

Mechanical structure. The machine adopts the combination of main machine and take-up machine to design machinery, so that the machinery occupies a small space and the take-up weight can be adjusted according to the requirements of customers.

Guide wheel. The trunk wire take-up machine uses two groups of wheels to ensure that the machine can run at high speed, reduce the failure rate and make the coil smooth and beautiful.

Tower wheel. The machine adopts 4 tower wheel structure, and the tower wheel is made of alloy material, which can place up to 17 wire drawing dies.

Tension device. The tension device can effectively adjust the tightness of the wire rod and keep the mechanical take-up and incoming line at a uniform level.

Finished product

Raw material galvanized wire

Finished fine galvanized wire

Company Information


Factory History.
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.
Factory workshop.
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: straight line wire drawing machine,Pulley wire drawing machine, wet drawing machine, Stainless steel wire drawing machine, Galvanized wire production line,Wire winding machine,Galvanized wire production line,And other wire drawing supporting machinery.
Factory R&D Team.
The factory has a strong and experienced R&D team. The average working experience of each engineer is more than 8 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.

Certifications

Our service

1. We can test the machine in our factory or yours' according to your requirement to train your workers.
2. One year gurantee for whole machine except vulnerable parts.
3. 24 hours technical support by email.
4. Door to door service can be provided.
FAQ



Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.
If you are interested in our machines,
please contact us now,
We will provide you with professional and reasonable solutions.

---
