Fast Speed Semi Auto Paperboard Flute Laminating Machine with Computer Touch Screen Control

Product Description

carton box making corrugated flute paperboard laminator machine
Features:
1.Top paper feeding by hand, feeding table incresed height, easy feeding and easy operation
2.Bottom corrugated sheet auto vacuum feeding, continuous automatic tracking according top paper feeding speed
3.Entire new concept,front gauge registration, position high accuracy, 1mm precision
4.The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at high speed.
5.Imported electrical components, to ensure the stability of the circuit system. PLC tracking technology, automatic fault alarm
6.Fully automatic glue supplementary system, can automatically replenish the loss of the amount of glue, and cooperated with the glue recycling
7.Independent water tank control cycle, ensure the bottom paper back dry, at the same time cleaning up roller,glue receive tank and back glue tank
8.Single side adjustment of the roller pressure, and equipped with a dial gauge, the replacement of the bottom paper one-step-to- reach
9.Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick

Technological parameter

Model	HRB-1300H	HRB-1600H
Max size of cover face	1300X1250mm	1600X1250mm
Mix size of cover face	400mmX400mm	400mmX400mm
Top paper thickness	140-800g	140-800g
Bottom sheet thickness	2/4 ply A/B/C/E/F Flute	2/4 ply A/B/C/E/F Flute
Machine speed	0-80m/min	0-80m/min
Precision	±1mm	±1mm
Power	7kw	7kw
Size	8m x 2m x 2.9m	8m x 2.3m x 2.9m
Weight	About 2500kg	About 3000kg

Main electrica and parts

N/M	NAME	MODEL	BRAND
1	relay	ZYS4N-JDC24V	Siemens
2	relay	ZYS4N-JDC24V	Siemens
3	relay	ZYS4N-JDC24V	Siemens
4	relay	ZYS4N-JDC24V	Siemens
5	relay	ZYS4N-JDC24V	Siemens
6	relay	ZYS4N-JDC24V	Siemens
7	relay	ZYS4N-JDC24V	Siemens
8	relay	ZYS4N-JDC24V	Siemens
9	contactor	3TS30 01E	Siemens
10	contactor	3TS30 01E	Siemens
11	contactor	3TS30 01E	Siemens
12	contactor	3TS30 01E	Siemens
13	contactor	3TS30 01E	Siemens
14	contactor	3TS30 01E	Siemens
15	relay base	13Y9W1	Omron
16	relay base	13Y9W1	Omron
17	relay base	13Y9W1	Omron
18	relay base	13Y9W1	Omron
19	relay base	13Y9W1	Omron
20	relay base	13Y9W1	Omron
21	relay base	13Y9W1	Omron
22	relay base	13Y9W1	Omron
23	INVERER	6000E-32R2GB/3004PBS68	Nidec-japan
24	INVERER	6000E-31R5GB/32R2PBS69	Nidec-japan
25	PLC	XC2-24T	Xinjie
26	Screen	7062TD	MCGS

Quality assurance and service assurance
1.The product design obeys the user's opinion, constantly improves, and ensures the stability and humanization of the whole machine from the design point of view.
2.The company's quality control department to purchase, processing, assembly of all aspects of quality supervision and management, multi-angle management to ensure the implementation of the company's product quality management.
3.The company quality control department to each finished product in accordance with the factory product standards for inspection.
4.Strong technical strength and efficient after-sales service team guarantee to solve all kinds of problems in the process of customer use, perfect quality information feedback management, make the product improve quickly, and always be in the leading position of technology.

Technically training
Our company sends the professional operation engineer to be responsible for the installation and debugging of the equipment as a whole. During the debugging process, we train the operator for the user in the factory of the customer. The contents are: introduction of the mechanical structure, adjustment of the components of the equipment, etc. The use of electrical operation switches and precautions, equipment daily maintenance and maintenance, in order to ensure the normal operation of the equipment in the future;
This product after-sales service is the responsibility of our company in the local nearest service center and the distributor: the company has the strong technical personnel and the after-sales service personnel team, carries on the exchange with the dealer and the user technical personnel regularly, And according to the market situation to the distributor after-sales service personnel training from time to time.

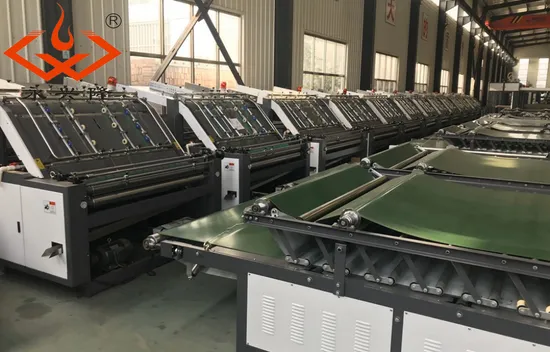

DONGGUANG XINGLONG PACKAGING MACHINERY CO., LTD. is specialized in the production of various kinds of carton equipments of the well-know enterprise.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take "the quality first" "integrity-based" corporate purpose always meet user're-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.

---
