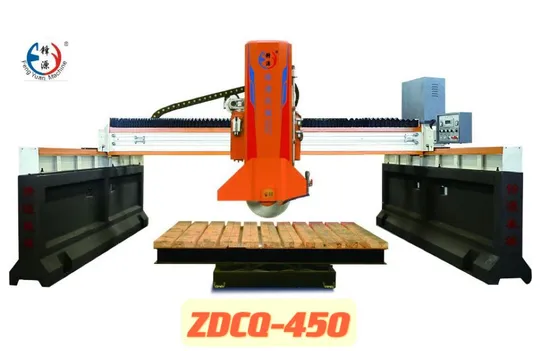

Zdcq-450 Hydraulic System Bridge Stone Cutting Machine Stone Cutter

US$500.00-12,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZDCQ-450
Usage
Granite, Marble
Application
Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
Artificial
Crossbeam Length
4760mm
Crossbeam Height
350mm
Crossbeam Width
315mm
Sidebeam Length
4700mm
Lifting Stroke
350mm
Max.Diameter of Blade
450mm
Table Tilting Degree
0-85
Table Rotating Degree
90 or 360
Table Dimensions(Lxw)
3200X2000mm
Main Motor Power
15kw
Transport Package
by One 20feet Container
Trademark
FENGYUAN
Origin
China
HS Code
8464209000
Production Capacity
1000set/Year

Product Description

Product Description
This infrared bridge cutting machine adopts infrared rays to align the knife to ensure accurate cutting, suitable for granite, marble, rock slab, tile, and other stone straight-cutting processing.
Type Unit FY-ZDCQ-450 FY-ZDCQ-600 FY-ZDCQ-800
Crossbeam Length mm 4760 4760 4760
Crossbeam Height mm 350 350 350
Crossbeam Width mm 315 315 315
Sidebeam Length mm 4700 4700 4700
Lifting Stroke mm 350 450 550
Max.Diameter Of Blade mm ø450 ø600 ø800
Flange Diameter mm 260 260 260
Water Cover mm 640 840 1040
Table Tilting Degree n 0-85 0-85 0-85
Table Rotating Degree n 90/360 90/360 90/360
Table Dimensions(LxW) mm 3200x2000 3200x2000 3200x2000
Max.Working Dimensions(LxWxH) mm 3200x2000x65 3200x2000x160 3200x2000x260
Main Motor Power kw 15 18.5 22.0
Crossbeam Driving Motor kw 1.5 1.5 1.5
Sidebeam Driving Motor kw 1.5 1.5 1.5
Hydraulic Motor kw 2.2 2.2 2.2
Water Consumption m³/h 4 4 4
Cement Base mm 4700*1000 4700*1200 4700*1400
Overalll Dimensions(LxWxH) mm 6000x5000x2800 6000x5000x2800 6000x5000x2800
