CNC Grinding Machine Tool Compound Horizontal Grinding 10-100 Inner 150mm

Product Description

Product Description
The machine consists of 4 axes, of which the X axis is the feed system, and the B axis is the horizontal rotation indexing axis.
Both the Z1 and Z2 axes are reciprocating motion systems, in which the Z1 axis is the outer round grinding wheel and the Z2 axis is the inner round sand wheel shaft.
2. The machine can grind the inner round straight hole, inner cone hole, step hole and inner end face of the workpiece; Outer circle, outer cone, outer end. The grinding cycle is automatically completed (including automatic feed, automatic grinding wheel dressing, automatic compensation, automatic fine grinding, rough grinding, automatic tool withdrawal).
Processing object:
The main processing objects of this machine tool are: it can grind inner cylindrical holes, inner conical holes, outer cylinders, outer conical surfaces, and inner and outer spherical surfaces. It is suitable for the inner and outer cylindrical processing of parts with an inner diameter of 10-100mm, an inner hole up to 200mm, an outer diameter of 30-150mm, and a maximum length of 150mm.
Product Parameters
Key Technical Parameters for MKF2110+B Multi-functional CNC Compound Grinding Machine:

Serial number	Name	Specification
1	Grinding hole diameter range	10-100mm
2	Maximum grinding depth of inner hole	150mm
3	Maximum grinding outer diameter	150mm
4	Maximum diameter of workpiece	150mm
5	Inner hole and outer circle roundness	2μm
6	Inner hole and outer circle cylindricity	3μm
7	Inner hole and outer circular surface roundness	Ra0.4
8	Internal and external concentricity	3μm
9	Perpendicularity of inner hole to end face	3μm

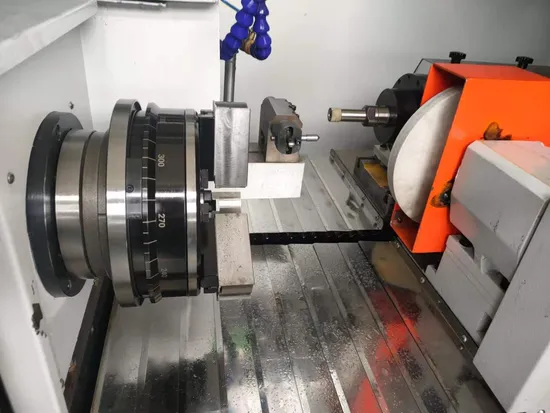

Detailed Photos

Company Profile
Our company offers variety of products in grinding machine which can meet your multifarious demands. Our main products are: CNC high-precision centreless grinding machine; CNC internal and external grinding machine; CNC vertical internal, cylindrical, end face grinding machine; CNC crankshaft grinding machine; CNC crankshaft milling machine; CNC camshaft grinding machine; CNC camshaft milling machine; Multi-function CNC surface grinding machine; Vertical machining center; Vertical gantry type machining Center and so on.At present, these products are mainly used in domestic high-end manufacturing fields such as national defense, research institutes, aerospace, shipbuilding, automobile, mining machinery manufacturing and so on. Users are all over China, and some products are exported to Southeast Asia, Europe and other countries. At present, these products occupy a considerable share in the same industry in China. Some varieties have reached the level of similar foreign products. The product cost performance has obvious competitive advantages at home and abroad.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
