130/3200 CNC Hydraulic Press Brake Metal Steel Bending Machine with Delem Da66t 4+1 Axis and Metal Sheet Bender

Product Description

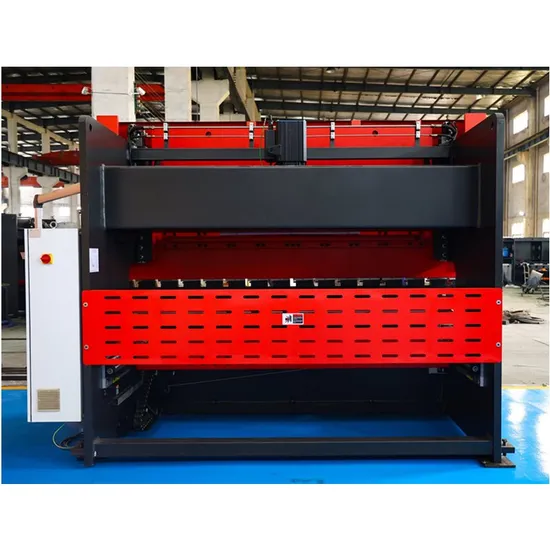

130/3200 CNC Hydraulic Press Brake Equipped with Delem Da66t 4+1 Axis and Metal Sheet Bender
Product Description:
The WF67K-130T/3200 hydraulic press brake is a robust and precision-engineered machine designed for high-performance metal bending tasks. With a bending force of 130 tons and a length capacity of 3200 mm, this press brake offers exceptional accuracy and reliability for sheet metal fabrication. It is equipped with advanced controls for easy operation, ensuring smooth and efficient processing in a variety of industrial applications. Ideal for both small workshops and large-scale manufacturing, the WF67K-130T/3200 delivers powerful performance and consistent results in metal forming projects.
Product Parameters
Technical parameters:

Type	Nominal force	Worktable length	Poles distance	Throat depth	Stroke	Max open	Power	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	L×W×H (mm)
40T/1600	400	1600	1300	250	130	450	5.5	2100×1300×2250
40T/2500	400	2500	2100	250	130	450	5.5	3000×1300×2250
70T/2500	700	2500	2100	320	130	450	7.5	3000×1350×2400
70T/3200	700	3200	2700	320	130	450	7.5	3700×1350×2400
90T/2500	900	2500	2100	320	130	450	7.5	3000×1350×2400
90T/3200	900	3200	2700	320	130	450	7.5	3700×1350×2400
110T/2500	1100	2500	2100	350	150	470	7.5	3000×1560×2455
110T/3200	1100	3200	2700	350	150	470	7.5	3700×1560×2455
110T/4000	1100	4000	3400	350	150	470	7.5	4500×1560×2455
130T/2500	1300	2500	2100	350	150	470	9	3000×1560×2455
130T/3200	1300	3200	2700	350	150	470	9	3700×1560×2455
130T/4000	1300	4000	3400	350	150	470	9	4500×1560×2455
170T/2500	1700	2500	2100	400	165	470	11	3000×1580×2500
170T/3200	1700	3200	2700	400	165	470	11	3700×1580×2550
170T/4000	1700	4000	3400	400	165	470	11	4500×1580×2550
170T/6000	1700	6000	5000	400	165	470	11	6500×1780×2970
220T/2500	2200	2500	2100	400	165	470	15	3000×1580×2500
220T/3200	2200	3200	2700	400	165	470	15	3700×1580×2550
220T/4000	2200	4000	3400	400	165	470	15	4500×1580×2550
220T/6000	2200	6000	5000	400	165	470	15	6500×1780×2970
260T/3200	2600	3200	2600	400	180	490	18.5	3700×1780×2750
260T/4000	2600	4000	3200	400	180	490	18.5	4500×1780×2750
260T/6000	2600	6000	5000	400	180	490	18.5	6500×1850×3600
300T/3200	3000	3200	2600	420	230	585	22	3000×1950×3100
300T/4000	3000	4000	3200	420	230	585	22	3700×1950×3100
300T/6000	3000	6000	4800	420	230	585	22	6500×2050×3700
400T/3200	4000	3200	2500	420	230	585	30	3700×2000×3300
400T/4000	4000	4000	3200	420	230	585	30	4500×2000×3300
400T/6000	4000	6000	4800	500	300	585	30	6500×2225×4000
500T/3200	5000	3200	2500	500	300	620	37	3700×2510×3750
500T/4000	5000	4000	3200	500	300	620	37	4500×2510×4260
500T/6000	5000	6000	5000	500	300	710	37	6500×2690×4475
600T/4000	6000	4000	3000	500	300	620	45	4500×2510×4260
600T/6000	6000	6000	5000	500	300	710	45	6500×2690×4475
800T/6000	8000	6000	5000	600	400	820	55	6500×2650×5500
800T/7000	8000	7000	5600	600	400	820	55	7500×2650×5700
800T/8000	8000	8000	6600	600	400	820	55	8500×2690×5900
1000T/6000	10000	6000	5000	600	400	1000	75	6500×3050×5700
1000T/7000	10000	7000	5600	600	400	1000	75	7500×3150×6000
1000T/8000	10000	8000	6600	600	400	1000	75	8500×3150×6500

Main Parts:D66t2D graphical touch screen programming mode17" high resolution colour TFTFull Windows application suiteDelem Modusys compatibility (module scalability and adaptivity)USB, peripheral interfacingUser specific application support within the control's multitasking environmentSensor bending & correction interface Profile-TL offline softwareOptional System:
TP10s DELEM DA-53t Cybtouch 12 Cybtouch 8 PS DELEM DA-53T CyTouch 15 PS Quick Climps
safe and fast tool changesubstantial improvement in time consumption and related costsSecure against tool falling downAvailable in manual, pneumatic and hydraulic models.Mounting: Simply from the bottom into the housing, tighten-DONE! Rexroth Proportional Valve
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.
Support RackThis machien is customized with 5 brackets, which have a powerful functions and can be adjusted to various positions to adapt to the mold.1) Toolings are made of 42CrMo mold steel, with an overall hardness of 47 degrees, excellent quality, and durability. The upper mold is installed on the slider and is fixed by a precision fast clamping device;
2) Using single V and double V molds can make mold replacement convenient and fast, reduce labor intensity, and improve production efficiency.Pedal Switch
South Korea brand foot switch is movable and can stop the machine anytime by the emergency button.
Company Profile
HUDONG HEAVY INDUSTRY MACHINERY MANUFACTURING CO.,LTD. is a specialized company, designated by the nation to produce forging equipments, press brake, shearing machine, press machine and rolling machine etc., with a producing histroy of more than30 years.The company has developed rapidly on design development and manufacture capability of products. We adopt advanced processing equipments, perfect designs, masterly craftwork and beautiful appearance. Our product has a strong structure, and a safe and reliable performance. Part of products win the title of "Award of high quality". And our company has been rated for consecutive years as "AAA Credit Unit", "Heavy Contract, Keep Promise Unit", "Customer Product Satisfaction Demonstration Unit", etc.Our products have passed certificate of ISO9001:2008 Quality Management System, and all of our products are audited by the European Union CE certification.The production management scale has been extended year after year with advantaged product market and high recognition by the customer. Since the past 30 years, the company has always adhered to the faithful management idea of "Customer First, Quality First", and established reliable market channel as well as mature clienteles. No matter at the present or in the future, our pursued objective for product quality is always: high-grade, high-precision, advanced technology, striving for manufacturing the most perfect machines.
FAQ
Q1. Are you a factory or a trading company?
A: Maanshan Hudong Heavy Industry Machinery Manufacturing Co.Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than30 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time?
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Maanshan Hudong Heavy Industry Machinery Manufacturing Co.Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.

---
