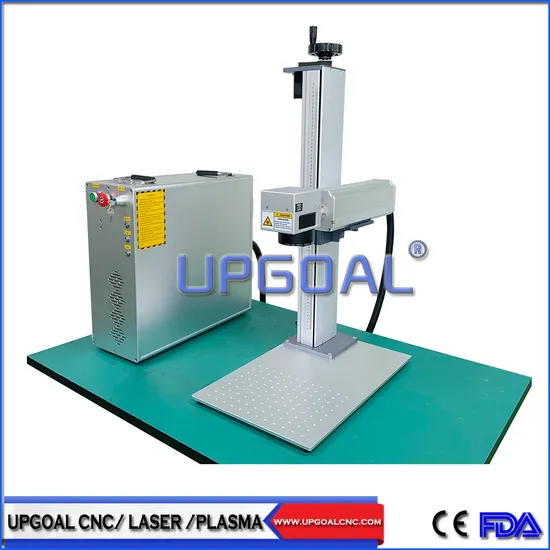

Auto Focusing 100W Fiber Laser Marking Machine with Rotary Disc Jpt 100W

Product Description

Auto Focusing 100W Fiber Laser Marking Machine with Rotary Disc JPT 100W
Features
1.Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of JPT M7-100W MOPA fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.
2. With Famous SINO-GALVO AF2206-600 serious galvanometer & high quality quartz scanning lens. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area. The galvanometer is automatic focusing type, just press button, then can realize auto focusing, no need measure material thickness and control by software, convenient and easy to operate.
3. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.
4. With 360degree turning rotary disc, for batch marking, also can for 20pcs pen marking, much improving marking efficiency.
5. With long object marking rotary axis,The tail top will not swing, good for marking long steel pipes, thermos cups, red wine bottles, etc.
6. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.
7. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.
8. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.
9. Marked graph and characters is permanent , will not regression due to friction.
10.Optiona smoke purifier( Conyson brand, 100W), with 3 layers purification, net filtration: 0.3um99.99%.
Technical Parameters

Maximum output laser power	100W-M7, JPT
Wave length of laser	1064nm
Marking scope	175*175mm/300*300mm
Laser sources	Fiber module
Laser Head	High speed scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Control system	Original Ez cad controller with USB port
Marking depth	0.01-5mm( depends on different materials)
Marking line width	0.01-0.1mm
Marking speed	≤7000mm/s
Laser repetition frequency	20kHz~80kHz
Cooling method	Force-air Cooling
Power supply	AC 220V/110V, 50/60Hz, single phase
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Process Material	All kinds of metal and part of Non-metal Materials
Certificate	CE

Applications
Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters's, marking, mass production, marking clear and beautiful, never disappear.
Reference Working Videos
https://youtu.be/XLbK8yCVKZo?si=0XNn8nIBXRXkJtgU
Accessories & packing
For more information, just feel free to contact us!
