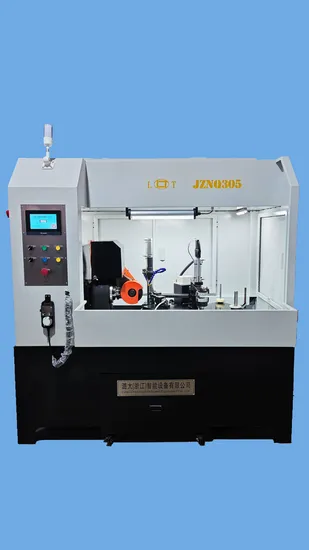

Saw Blade Sharpening Machine, Mechanical Arm Front Angle Saw Grinder

Product Description

Machine features
1. This machine is a specialized automated equipment for grinding the front angle of alloy circular saw blades.
2. The utility model adopts a manipulator upper and lower saw blades, which are simple and convenient to operate, and one person can operate multiple devices.
3. Adopt PLC system control, Servo Motor Drive, Operation Program design is simple and easy to understand.
4.The host part is controlled by the servo, which drives the shifting teeth and can process the combined tooth pitch.
5.The machine offers a variety of grinding processes and comes with a fast grinding mode.
6.This type of manipulator adopts motor position and is equipped with single-chip and double-chip detection function.
7.This model is equipped with hand-held pulse handwheel, which is more convenient to adjust the machine.
8.The machine is equipped with automatic oil supply and lubrication system, which can effectively improve the service life of linear guide slider.
Technical parameter

Blade Diameter	Ø110-Ø305			mm
Manual diameter	Ø500			mm
Range of tooth pitch	≤50			mm
Applicable tooth thickness	4			mm
Front angle	5-25			°
Grinding wheel swing angle	±45			°
Grinding wheel stroke	0-40			mm
Grinding wheel speed	5500			r/min
Working air pressure	0.4-0.6			MPa
Supply voltage	AC380V50Hz			V
Weight	1200			Kg
Machine tool dimensions	1750×1100×1800			mm

---
