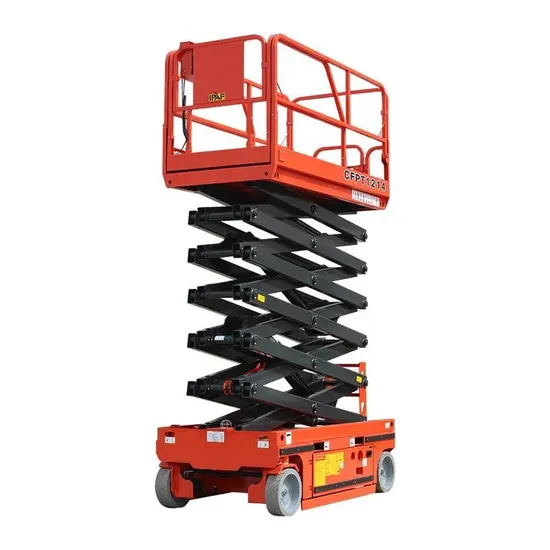

Self-Propelled Scissor Lift 8m 10m 11m 12m Electric Lift Platform Working Lifting Height 13.8m for Sale

US$8,600.00-9,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
PT1214
Application
Workshop Crane, Warehouse Crane, Building Crane, Schools, Hotels, Property, Shopping Malls, Factori
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
DC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Weight
2990kg
Platform Load
450kg
Max Working Height
10m
Occuoants
2
Platform Size
2270*1110mm
Travel Speed
3km/H
up/Down Speed
58/50sec
Gradeability
30%
Min. Ground Clearance
150mm
Lifting Motor
24V/4.5kw
Lifting Height
11.8m
Colour
Customizable
Working Height
13.8m
Transport Package
EPE
Specification
2280x2060x1100mm
Trademark
NUOXTON
Origin
China
HS Code
8428909090
Production Capacity
1200 Units/Year

Product Description

Self-Propelled Scissor Lift 8m 10m 11m 12m Electric Lift Platform Working Lifting Height 13.8m with CE ISO Automatic pothole protection system
Emergency descent system
Solid rubber tires
Hydraulic pump station power system

High control handle sensitivity, smooth steering, point control in place!
All-self-propelled hydraulically driven aerial work platform has a climbing capacity of 25%, which has a strong climbing ability and can easily cope with a variety of terrain
Product parameter Applications
Model CFPT1214
Load capacities 320kg
Load capacities of extended platform 113kg
Maximum number of workers 2
Working height 13.8m
Maximum platform height 11.8m
Length of the whole machine 2485mm
Overall length 2280mm
Overall height(guardrail unfolded) 2613mm
Overall height(guardrail folded) 2060mm
Platform size 2270mmx1110mm
Platform extension size 900mm
Minimum ground clearance (stowed) 100mm
Minimum ground clearance (raised) 19mm
Wheelbase 1865mm
Min.turning radius(inner wheel) 0mm
Min.turning radius (outer wheel) 2.2m
Lifting motor 24v/4.5Kw
Machine running speed (stowed) 3Km/h
Machine running speed (raised) 0.8Km/h
Rising/descending speed 58/50sec
Overall weight 2990Kg

Aerial Work Platforms is widely used for the equipment installations and maintenance such as construction sites workshops, warehouse, granary, theatre or museum, bus/railway stations, hotels, airports, gas station and aerial pipeline. Non-trace universal polyurethane wheels used will be no damage to ground. DC Battery power make the low noise when using and convenient to moving and one person operation
Certificate
Trade Fair show
Product line
We are a manufacturer specializing in the production of handling equipment. We firmly follow the trend of international modern industrial and logistics equipment in the direction of convenience, intelligence, energy saving and environmental protection,and is determined to become a high-tech enterprise in logistics handling, and strive to become a leader in logistics solutions.
We have internal combustion counterbalanced forklifts, battery counterbalanced forklifts, electric logistics handling equipment container cranes, electric hoists,self-propelled high-altitude working platform,etc., and forklift can be equipped with accessories with different functions to meet the needs of customers in different places and environments,Our factory has advanced parts processing center, robot welding equipment, parts self-propelled hoist conveying line, painting line, assembly line whole machine performance testing line, forklift parts test bench and ERP management system. Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Being open, vibrant, confident and courageous,, we are always warmly welcome friends from all over the world to joint efforts for a brightful future.

FAQ
Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.
Q: What is the payment term?
A: Normally we accept, TT, LC at sight.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color according to your color number.
Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.
Q:What certification do you have?
A:Our company has passed ISO 9001:2008 and all of the product have CE certification.
Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 7 working days. We have professional after sales department to support for you at any time.
Q:How can I get the best price?
A:Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
