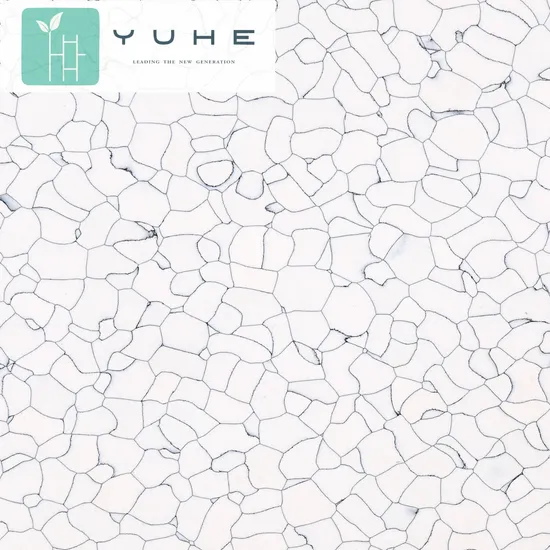

Anti-Static Conductive Flooring Tiles with ESD Function in Vinyl 2mm

US$6.00
1,000-2,999 Square Meters
US$5.75
3,000-4,999 Square Meters
US$5.55
5,000+ Square Meters

Basic Info.

Model NO.
YHE-1801
Material
PVC
Size
600*600mm
Function
Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static, Anti Slip
Surface Treatment
Simple Color
Color
Grey
Metal Type
None
Certification
CE, ISO, Floorscore, Tvoc, RoHS, Reach, SGS
Usage
Electrical Factory, Computer Room, Bank, Offices, Electronics, Cleanroom
Advantage
Easy to Clean
Customized
Customized
Dimension
600mmx600mm
Thickness
2mm, 2.5mm, 3mm
Composition of Material
Homogeneous
Static Conductive Electronic Resistance
1.0X10e4-1.0X10e6 Ohms
Static Dissipative Electronic Resistance
1.0X10e6 Ohms - 1.0X10e9 Ohms
Weight
3800 G/Sqm(2mm), 4800 G/Sqm(2.5mm), 5550g/Sqm(3mm)
Starting Voltage
50V for Conductive, 100V for Dissipative
Walking Body Voltage
Average 30V
Static Decay Time(S)
0.01 Second
Dimensional Stability
0.05%
Wear Resistance
Group P
Fire Resistance
Class I; Bfl - S1
Color Fastness
>=6
Residual Identation
0.01mm
Tvoc After 28 Days (Ug/M3)
<10 Ug/M3
Transport Package
Pallet
Specification
12′′x12′′, 24′′x24′′, 36′′x36′′, 600mmx600mm
Trademark
YUHE
Origin
China
HS Code
39181090
Production Capacity
5, 000, 000 Sqm/Year

Packaging & Delivery

Package Size
125.00cm * 63.00cm * 113.00cm
Package Gross Weight
1450.000kg

Product Description

Product Description Brief Introduction
Electrostatic Discharge (ESD) flooring, also known as anti-static flooring, or static control flooring, comes with permanent anti-static performance (static conductive or static dissipative) and protects electronics from damage caused by static electricity.
The ESD flooring tiles are of high density, homogeneous, and non-porous natural organic tile visual. They're manufactured by extrusion, mixing, and pressing the 100% virgin PVC granules with carbon (graphite) fibers, calcium carbonates, DOPT plasticizer, Titanium dioxide white paint, etc. under proper pressure and temperature. Conductive elements are distributed throughout the flooring material (homogeneous), Thus they give ESD floors electrical conductivity, create an electrical pathway from the walking surface to the ground, and guarantee a permanent ESD performance.
ESD vinyl flooring tiles are the choice of professionals for controlling electrostatic discharge in clean rooms, electronics manufacturing, laboratories, testing stations, data centers and anywhere static-sensitive components are being used or manufactured.
ESD Flooring Tile Sizes
The popular and standard sizes are 600×600mm, 610x610mm, and 900×900mm.
The thickness of the tiles are 2.0mm, 2.5mm, and 3.0mm.
Weight: 3800 g/sqm(2mm), 4800 g/sqm(2.5mm), 5550 g/sqm(3mm).
Features
Carbon-fibres loaded ESD anti-static flooring tiles Low TVOC emissions
Meet FloorScore®
DOTP plasticizer, Phthalate FREE
Permanent anti-static properties
Outstanding stain, chemical, heat, fire, slip, and light resistance
High durability, easy to clean and maintain
Excellent dimension stability
Various patterns and colors
Conform with life safety NFPA 101-2012
It can be seamlessly installed by heat welding
Product Parameters TECHNICAL DATA
Item Standard YH FLOORS Result
Electrical Resistance(Ω) SJ/T11236-2020
EN1081
Conductive Dissipative
1.0x10E4 - 1.0x10E6 ohms 1.0x10E6 - 1.0x10E9 ohms
Starting Voltage AATCC-134 50 V 100 V
Static Electrical Propensity EN 1815 Antistatic (≤ 2 KV)
Walking Body Voltage (V) ANSI /ESD S20.20-2021
|U|<100V
Average: 30V
Static Decay(s) Federal Test Method
1018 Method 4046
0.01 sec 0.01 sec
Dimensional Stability(%) after exposure to heat ISO 23999-2018 0.05%
Wear Resistance(1000r) EN 660-2 Group P
Slip Resistance Wet DIN 51130 R9
Fire Resistance ASTM E648-17 Class I
EN13501-1 Bfl - s1
Smoke Density ASTM E 662 < 450
Residual Indentation(mm) ISO 24343-1:2012 0.01mm
Color Fastness ISO 105-B02 ≥ 6
Critical Radiant Flux ASTM E648/NFPA 253 Class 1(> 0.45 W/cm2)
Resistance to Staining & Chemicals EN ISO26987:2012 Not affected, Index 0.
Thermal Conductivity ISO 10456 (EN 12524) 0.25 W/(m.K)
TVOC After 28 Days(μg/m³) ISO 16000-3 < 10 μg/m³
Our Advantages * Leading OEM Service provider in the ESD Vinyl Flooring Industry.
* The largest ESD vinyl flooring manufacturer in China, with over 30 years of experience.
* The Annual output is around 5 million sqm for ESD tiles and 7.5 million for ESD sheets.
* Patents on products and production lines.
* Quality is among the top 3 in China.
* ISO9001, ISO14001, and ISO45001 certified.
* A full set of SGS certifications of TVOC, RoHS, CE, and other properties.
* Completed a lot of ESD vinyl flooring projects for Fortune Global 500 companies in China.
* All our ESD Conductive and Dissipative floor tiles are designed to be wax-free, low maintenance with permanent electrical properties.
* ESD vinyl tiles are flexible because the 100% virgin PVC percentage is 30%, and the DOTP plasticizer percentage is 20%.
1. Advanced Manufacturing Full-automated production lines to ensure higher production capacity and efficiency.
The longest-tempering production lines in China.
Our specialized and unique manufacturing process gives our ESD vinyl flooring tiles the qualities that make them durable, practical, and economical.
2. Good-quality environmental-friendly raw material
Sustainability:100% virgin PVC, 100% recyclable, Contains no recycled content.
We use DOTP as a plasticizer for ESD PVC flooring.
Dioctyl terephthalate commonly abbreviated DOTP or DEHT. It is a non-phthalate plasticizer that is considered safer than ortho-phthalate plasticizers due to its excellent toxicological profile.
The product does not contain carcinogens such as benzene and heavy metals such as lead.
3. R & D Strength Patents in products including ESD flooring tiles and anti-static flooring sheets, as well as conductive vinyl flooring production process optimization.
An independent testing laboratory with appropriate testing instruments and equipment.
Testing and calibration are performed using USA/EU/JAPAN/CHINA standard methods. The ESD vinyl flooring tiles are in compliance with different standards.
We implement a pretty good color and size management solution. Packaging & Shipping
Certifications

Tips
1. There can be slight variation in shade from batch to batch due to the limitation of the manufacturing process and vinyl material.
Laying to be carried out considering this.
2. Material is directionally sensitive. Install the anti-static vinyl flooring tiles with the indicative arrows in the same direction.
shading will occur if directional markings are not followed.
3. Easily buffs to a shine, no finishes required, and resists the effects of common chemicals and solder.
4. The anti-static PVC floor tile is designed, manufactured, and tested to perform at constant temperatures, not fluctuating more than 10° from normal selected service temperatures from the allowable 65° F (19° C) - 85° F (30° C) range.
5. This static conductive ESD vinyl tile is designed for service within ambient relative humidity between 40% and 60%.
6. During acclimation, the site must be fully enclosed, and weather-tight, and the material must be in the installation area with the HVAC system functional and operating at desired service temperatures and maintain an ambient relative humidity between 40% and 60% for a period of 48 hours prior to installation, during the installation and for the service life of the installation afterward.
8. Accessories
Welding rods/welding beads: 4mmØx100m, 20 rolls/ctn
Copper foil/copper strip/copper tape: 0.025 (T)mmx12mm (W)x500m(L)/roll, 5000m/ctn
Conductive adhesive: 20kg/EA
ESD Wax: 4 gallons/ctn
