US$15,000.00-199,000.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Metal Aluminium Milling Drilling Tapping Boring
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Spare Tool Post with Quick Change Optional
Controlling Mode
Artificial
Precision
Normal Precision
Distance Between Centers
1500 - 12000mm
Max. Swing Over Bed
1000mm 1250mm 1400mm 1600mm
Spindle Bore Diameter
130mm
Power of Main Drive Motor
22kw
OEM
Paining, Logo, Model, Spare Parts
Application
Car/Train Wheel Processing
Processing Material
Aluminium Copper Steel
Origin
Made in Shanghai China
Product Description
Product Description
(SUPER GOOD QUALITY ONLY!!!)

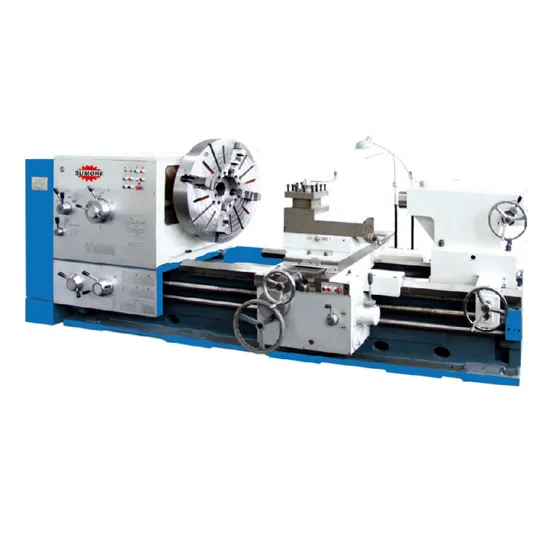

Japanese Quality High Precision Universal Lathe Machine with Big Bore
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
SP2147 C62160G metal torno heavy duty large diameter lathe machine torno mecanico horizontal lathe machine
Workshop equipment 1 to 12 meter swing diameter 1 to 1.6 m horizontal not second hand manual metalworking lathe machine
Quick Detail: Main specification of horizontal lathe machine:Processing material: aluminum, copper, metal, steel etc.Workpiece length: 1500/2000/3000/4000......12000mmSwing over bed: 1000/1250/1400/1600mm
Max workpiece weight: 8TSpindle bore: 130mm Description: SP2147 engine lathe machine has big hole 130mm spindle bore, the work piece length could be up to 12000mm, It is universal lathe machine with strong function. This manual lathe machine has up to 1600mm large swing over bed. The main features/advantages are as below: 1. This lathe machine can use to process castings, steel and medium-sized and large-sized parts of nonferrous. 2. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. 3. This serial lathe machine are universal lathe,suitable for high-speed steel and carbide cutting tools for different materials steel shaft parts, cylindrical parts and disk-shaped, for turning cylindrical, face, grooving, cutting, boring, boring the cone, threading and other processes. 4. They are also suitable for turning external cylindrical, inner hole and end face. 5. Triple support of this series lathe machine ensures spindle rigidity and supporting capacity. 6. This series lathe machine have the large speed range, and the motion is smooth and the low temperature-rising. 7. This series lathe machine has the nice and dignified appearance.
Product Parameters
Model
| SP2147-I/II/III/IV
|
Swing over Bed
| 100/1250/1400/1600 mm
|
Swing over Cross Slide
| 620/870/1000/1200 mm
|
Swing over Gap
| 1300/1550/1700/1900 mm
|
Valid length of gap
| 450mm
|
Distance Between Centers
| 1.5/2/3/4/5/6/8/10/12m
|
Width of Bed
| 780 mm
|
Spindle Bore
| 130 mm
|
Spindle Taper
| 1:2 Φ120 mm (140mm optional)
|
Range of Spindle Speeds
| forward 21 kinds, reverse 12 kinds
|
GEAR BOX-THREADS & FEEDS
|
|
Metric threads range(kinds)
| 1-120mm(44 kinds)
|
Inch threads rangs(Kinds)
| 1/4-24 inch(31 kinds)
|
Moudle threads range(kinds)
| 0.5-60mm(45 kinds)
|
Diametral threads range(kinds)
| 1/2-56DP(38 kinds)
|
Longtudinal feeds range(kinds)
| 0.1-12mm (56 kinds)
|
Cross feed range(kinds)
| 0.05-6mm (56 kinds)
|
Rapid feed:Long./Cross
| 4/2m/min
|
Leadscrew size:Diameter/Pitch
| 3400mm/min, 1700mm/min
|
CARRIAGE
|
|
Cross slide travel
| 650 mm
|
Compound rest travel
| 280 mm
|
Tool section
| 45*45 mm
|
TAILSTOCK
|
|
Spindle diameter
| 160 mm
|
Spindle taper
| Metric 80#
|
Spindle travel
| 300 mm
|
MOTOR
|
|
Main drive motor
| 22kw
|
Coolant pump motor
| 0.15kw
|
Rapid feed motor
| 1.5kw
|
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
>>
