Basic Info.
Model NO.
TR-TC-3536D Automatic Open-Cup Flash Point Tester
Application
Oil Product, Base Oil, Derivatives, Industrial Lubricant, Oil&Petroleum
Transport Package
Paper/Wood Box
Specification
AC 100-240V, 50Hz/60Hz
Production Capacity
5000PCS/Years
Product Description
Touch Screen:
LCD Screen:

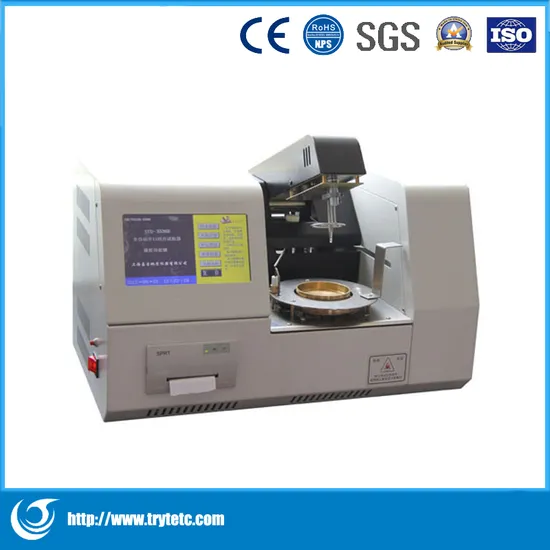

Fully-Automatic Cleveland Open-Cup Flash Point Tester-Flash Point Tester-Oil Testing Instrument
Summary: This instrument is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79ºC and below 400ºC except fuel oils.
Main technical features: 1. This instrument is a kind of fully-automatic instrument wich can do determination for both flash point and fire point. 2. This instrument adopts technology of single chip microcomputer and LCD screen.Full English man-machine dialog interface. It can preset the parameters of expected flash point,sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type. 3. This instrument adopts desktop structure and advanced design.The man-machine interface make it easy to use.And the test result is accurate.It can be widely used in railway,aviation,electric power, petroleum industry and colleges,scientific research institutes,measurement departments to do determination of flash point and fire point for petroleum products.
Main technical specifications:
1. Power supply: AC(220±10%)V, 50Hz 2. Flash point determination: Range:Ambient to 400ºC Repeatability: ≤8ºC Reproducibility:≤17ºC Accuracy:0.1ºC 3. Heating rate: Correspond with GB/T3536 and ASTM D92 4. Igniting mode: Electric ignition, Gas flame diameter: 3.2mm~4.8mm 5. Ambient temperature:(10~40)ºC 6. Relative humidity:≤80% 7. Maximum power consumption Main technical specifications 1. Power supply: AC(220±10%)V, 50Hz 2. Flash point determination: Range:Ambient to 400ºC Repeatability: ≤8ºC Reproducibility:≤17ºC Accuracy:0.1ºC 3. Heating rate: Correspond with GB/T3536 and ASTM D92 4. Igniting mode: Electric ignition, Gas flame diameter: 3.2mm~4.8mm 5. Ambient temperature:(10~40)ºC 6. Relative humidity:≤80% 7. Maximum power consumption:500W 8. Dimension:520mm×380mm×310mm:500W 8. Dimension:520mm×380mm×310mm
Packing:
Company Information:
As a diversified manufacturer of high-tech products, it was founded in 1999, and devoted to the products, sales and technical service for various industries and fields like Energy analysis instrument, Oil, coal, steel, and geology; medical analysis and application instruments, biochemistry analyzer, elisa reader, blood analyzer,and urine; as well as laboratory application instruments,autoclave/sterilizer,freeze dryer, incubator,drying oven,balance,ICP,DRS,HPLC,gas chromatography,and spectrophotometer,meanwhile,TRYTE Technologies integrated and purchased some companies of PCB board, highway instruments at home and abroad. Our company has become the "one stop" instrument procurement service provider worthy of the name.
TRYTE technologies (TRYTE) mainly sell products by selling direct to customer, but also through distributors, resellers and manufacturer representatives, telephone sales and e-commerce sales, customers cover all over 80% of the world's countries and regions.TRYTE have solutions with rules adaptability according to the specific requirements of the design, from the instrument to some laboratories or departments.Whichever kind of solution you choose, you can fully trust it, because it is proved from 100, 00 successful results, leading development process, and decades of actual certification experience.
Why choose us?
1. We supply high quality products with reasonable price.
2. We are the professional manufacturer;
3. Advanced production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
>>
