Basic Info.
Protection
Unbalanced Loads
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Pure Sinewave
Output Capacity
Large Type
Equipment Mode
Centralized Model

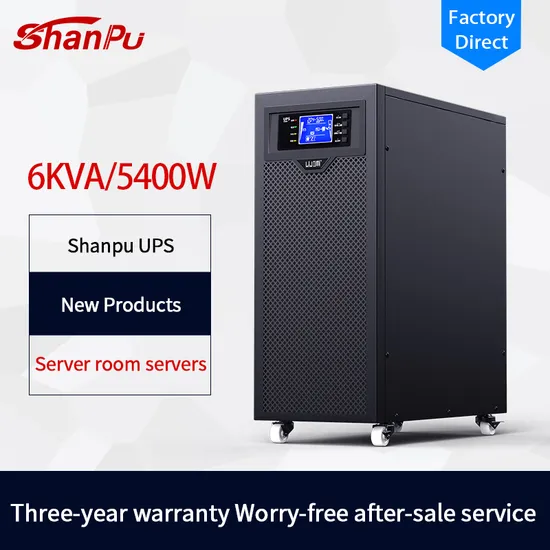

Product Name
Online UPS 6kVA
Machine Type
6kVA 5400W Online UPS
Protect
Overload , Overcurrent , Anti-Surge Protection
Power Factor
0.9 High Efficient
Input Voltage Range
110-300VAC+-5
Output Voltage
220VAC ( 110VAC Optional)
Battery Capacity
12V/7ah *16
Battery Type
Maintenance-Free Lead-Acid Battery
Transport Package
Cardboard &PE Foam &Poly
Specification
Foam Box + 5 layers of cardboard
Packaging & Delivery
Package Size
66.00cm * 36.50cm * 83.00cm
Package Gross Weight
62.000kg
Product Description
1. High frequency online ups UPS
2. Pure Sine Wave Output Online UPS, could meet large capacity large euquiment metting
3.A short circuit protection , overload pretect , over current peotection
4. 110-300Vac input acceptable , 220V ±3% stable output power
5. With battery over-discharge protection and battery over-charge protection.
6. Wave form is pure sine wave , hight efficiency
7. Super filter function,easy to solve the interference
Model | SP6K(S) | SP10K(S) | 3C10K(S) | 3C15K(S) | 3C20K(S) |
Phase | Single-input single-output | Three-input single-output |
Capacity | 6KVA/4800W | 10KVA/8000W | 10KVA/8000W | 15KVA/12000W | 20KVA/16000W |
Input |
Input Voltage | 208/220/230/240VAC | 400VAC (3-phase + N) |
Voltage range | 110-300VAC @ 50% load 176-300VAC @ 100% load | 190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load |
Input Frequency | 46~54Hz or 56~64Hz |
Power Factor | ≥0.99@100% load |
Output |
Output Voltage | 208/220/230/240VCA |
Voltage Range (Battery Mode) | ±1% |
Output Frequency | 46-54Hz/56-64Hz |
Frequency Range (Battery Mode) | 50Hz/60Hz±0.1Hz | 50Hz/60Hz±0.2Hz |
Surge Rating | 3:01 | 3:01 |
Output Harmonic Distortion | ≤3% THD (Linear Load) ≤6% THD (Non-linear Load) |
Transfer Time | 0 |
Output Waveform | Pure Sine Wave |
Battery |
Stardard UPS | Battery Model | 12V/7AH |
Number of Batteries | 16 |
Charging Time | Charged to 90% in 9 hours |
Maximum Charging Current | 1A/2A |
Charging Voltage | 218.4VDC±1%/273VDC±1% |
External battery UPS | Battery Model | Depends on the applicant |
Number of Batteries | 16-20(could customized) |
Maximum Charging Current | 1A/2A/4A/6A(adjustable) | Programmable: 4A, 1A/2A/4A. |
Charging Voltage | 273VDC±1% (based on 20 cells) |
Display Instructions |
LCD | Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication |
1.Data centers , hospital medical equipment, telecommunication networks
2. Banks and financial institutions , Camera monitoring
3. Precision devices , Server , Hospital equipment
4. Manufacturing facilities, educational institutions , retail stores
5. Precision instruments , emergency power supply
6. Government ofices , airports systems , research laboratories
7. Broadcasting stations , oil and gas industry equipment
8. IT data centers , E-commerce websites , call centers systems
9. Hotels and resorts , reservation systems and security equipment
10. Water treatment plants facilities , emergency servies systems
11. Research institutions , server rooms , shopping platforms and etc.
Shanpu Technology Co., Ltd. is an excellent technology company that specializes in the development, production, and sales of high-quality ups power supply. Our company has 20 years experience and has grown to become a well-respected brand in the ups industry. We provide OEM, ODM and advanced customization services to over 50 countries ,35,000 customers, We are committed to providing our customers with the high quality products that meet their specific needs.
Our main products include UPS uninterruptible power supply, solar inverter, UPS battery , outdoor power station and mini ups power, widely used in finance, education, telecommunications, automotive, medical,manufacturing and other industries. We offer after-sales support to ensure that our customers are completely satisfied with their purchases.industries.Shanpu provides a safe and reliable power environment for many users
Q1: Why to choose us?
---More than 20 years UPS factory experiences ---Professional sales team and R & D team ---Qualified product and competitive price ---Delivery in time ---Sincerely services
Q2:How is your after-sale service?
--We provide 1-2years warranty and 1%sapre parts for free
-We will repair the PCB or provide new one
Q3:What kind of certification you have?
--IS09001,IS014001,CE,ROHS,UL,and so on
---All series UPS pass different labor testing according to different countries'requirements
Q4:Delivery time:
--Standard products could be delivered within 2-3 days;
Q5.Can I have a sample order?
--Yes,we welcome sample order to test and check quality.
Q6.Do you have any MOQ?
--Yes,we have MOQ for mass production,it depends on the different part numbers.1~10pcs sample
order is available.Low MOQ,1pc for sample checking is available
>>
