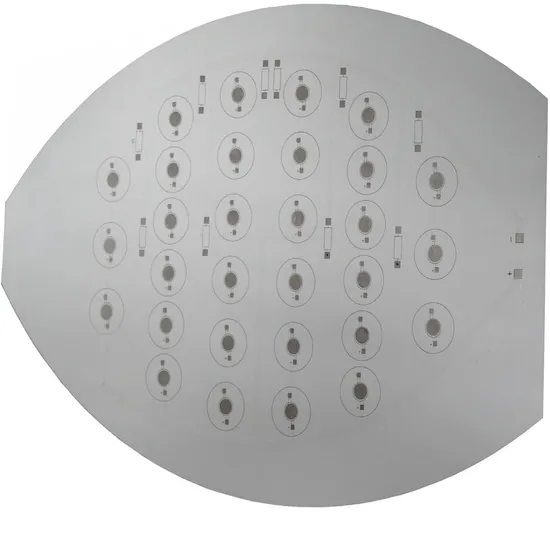

Aluminum PCB for High Power LED Lighting

Product Description

Other PCBs for reference:
PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality,competitive Price & Best Service
4.100% E-test
Testing Procedures For PCB Board:
We perform multiple quality assuring procedures before shipping out any PCB board. These include:
- Visual Inspection
- Flying probe
- Impedance control
- Solder ability detection
- Digital metallogenic microscope
- AOI (Automated Optical Inspection)

Quotation Requirement :
-Following specifications are needed for quotation:
1. Quantity
2. Base material
3. Board thickness
4 .Copper thickness
5. Surface treatment
6.color of solder mask and silkscreen

Delivery Time for PCB board:
Lead time:
Quickturn for sample : 2 layers 24 Hours , 4 layers 2 days or 3 days.
General sample: 3 - 5days /
mass production: within 7 days
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2.DHL, UPS, FedEx, TNT forwarder of China.
3. We could ship the parcel by Russia Special Air Line for
Russian customer
(No TAX in your there, 3 - 10 days to Moscow , 15-20 days to other city)
4. By sea or air for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.Payment By Paypal,T/T,West Union,etc.

PCB Manufacture Capability

Item	Manufacture Capability
Layers	1-26 Layers
HDI	2+N+2
Material Types	Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free,
	Isola, Taconic, Arlon, Teflon, Rogers,
Max. Panel Dimension	39000mil * 47000mil (1000mm * 1200mm)
Outline Tolerance	± 4mil (± 0.10mm)
Board Thickness	8mil-236mil (0.2 - 6.0mm)
Board Thickness Tolerance	± 10%
Dielectric Thickness	3mil-8mil ( 0.075mm-0.20mm)
Min. Track Width	3mil ( 0.075mm )
Min. Track Space	3mil ( 0.075mm )
External Cu Thickness	0.5 OZ - 10 OZ ( 17um - 350um)
Internal Cu Thickness	0.5OZ - 6OZ ( 17um - 210um)
Drilling Bit Size ( CNC )	6mil-256mil ( 0.15mm - 6.50mm)
Finished Hole Dimension	4mil-236mil(0.1mm - 6.0mm)
Hole Tolerance	± 2mil (± 0.05mm)
Laser Drilling Hole Size	4mil(0.1mm)
Aspect Ration	16: 1
Solder Mask	Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge	2mil(0.050mm)
Plugged Hole Diameter	8mil-20mil ( 0.20mm-0.50mm)
Beveling	30o - 45o
V-scoring	+/-0.1mm, 15o 30o 45o 60o
Impedance Control	Min. 5% General ± 10%
Surface Finishing	HASL, HASL(lead Free), Immersion Gold
	Immersion Silver, OSP, Hard Gold ( up to 100u" )
Certification	UL RoHS ISO9001: 2000 ISO14000: 2004 SGS
Testing	Flying probe, E-TEST, X-RAY Inspection , AOI
Files	Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc

Company introduction:
Fastline Circuits Co.,Limited has the most diversified printed circuit board technologies available, including Single-sided PCB, Multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, Flexible PCB, Heavy Copper PCB, Ceramic PCB, and PCB assembly and other special PCB boards.
We believe that the quality is the soul of an enterprise and provides time-critical, technologically advanced engineering and manufacturing services for the electronics industry.
Sound quality gains a good reputation for Fastline. Loyal customers has cooperated with us again and again and new customers come to Fastline to establish cooperation relationship when they hear of the great reputation. We look forward to offering high-quality service to you!
FAQ
Q1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.
Q4: What is the lead time?
A4:Sample needs 7-10 days, mass production needs 10- 15 days,
according to the order volume.Also we can provide quick time service 1-2days.
Q5: What payment terms do you have?
A5: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.

---
