US$5,300.00-5,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Other Material Cutting
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Processing Precision
<=0.015
Performance Classification
Economical CNC Machine Tools
Clamping
Pneumatic(Hydraulic Is Optional)
Guide Rail
Flat Linear Guide Rail
Installable Accessories
Chat with Supplier
Transport Package
Wooden Box
Specification
1800*1500*1800mm
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
200.00cm * 170.00cm * 200.00cm
Package Gross Weight
1250.000kg
Product Description
Product Description
Detailed Photos
Product Parameters
Technical Parameter
Standard Configuration:

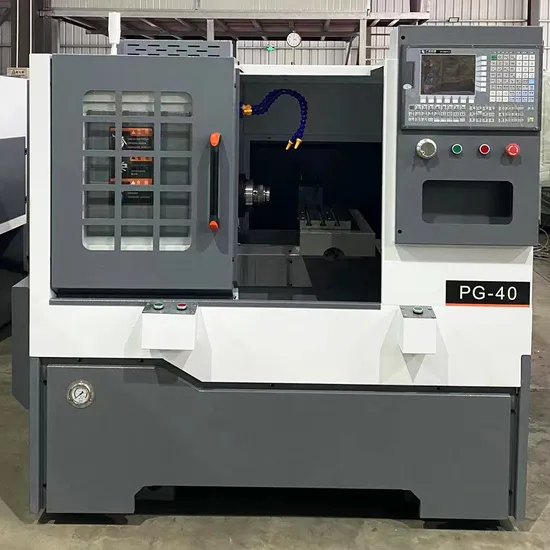

Machine model: PG-40
Specifications of bed: integral bed
Control system: Keyuan 980TB2 system
Clamping configuration: pneumatic clamping (selectable hydraulic)
Tool configuration: Row tool post
Feed system:
1. X screw: 2510*595 (Taiwan SHAC)
2. Z-axis lead screw: 3210*760 (Taiwan SHAC)
3. X guide rail: Taiwan SHAC GH25-700
4. Z guide rail: Taiwan SHAC GH30-700
Spindle bearing: 7215DBB/7213DBB
Other configuration: electric oil pump, water pump
Machine bed: integral bed 250 casting
Parameter | SPECIFICATIONS | Units | PG-40 |
Machining Capacity | Maximum turning diameter over bed | mm | Φ400 |
Maximum turning diameter over turret | mm | Φ120 |
Maximum machining length | mm | 150 |
Maximum machining bar diameter | mm | 48 |
Diameter of spindle bore | mm | Φ40 |
Maximum stroke of X/Z | mm | 680/370 |
Power System | Spindle maximum spindle speed | r/min | 3000 |
Spindle Motor | KW | 4 |
Spindle Transducer | KW | 4 |
X/Z drive motor | N/M | 4/4(Keyuan original) |
Tool Post | Height of rectangular tool shank section | mm | 20 |
Precision | Repeat Positioning accuracy | mm | 0.01 |
Machining accuracy | mm | <0.01 |
Spindle beat | mm | <0.01 |
Other | Hydraulic pump motor | kw | 0.75 |
Cutting fluid pump motor | kw | 0.4 |
Power supply power | KVA | 7.5 |
Machine weight | kg | 1100 |
Machine Size | mm | 1800x1400x1600 |
Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
>>
