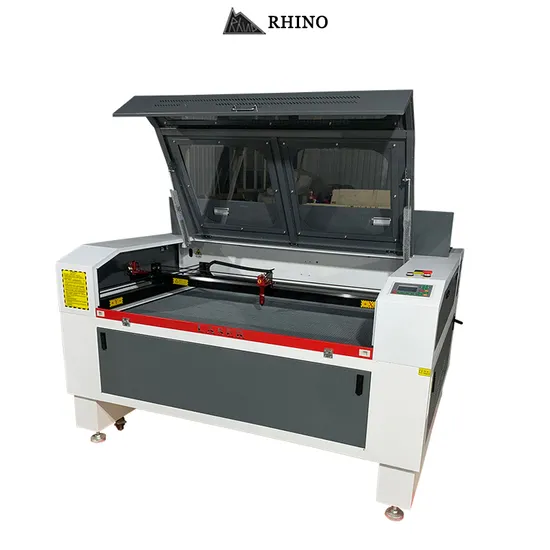

Factory Price1390 180W CO2 Laser Cutting Machine Mini Laser Engraving Machine for Acrylic Wood Paper Glass

US$2,650.00 1 Piece (MOQ)

Basic Info.

Model NO.
FCC3-1
Cooling System
Air Cooling
Technical Class
Pulse Laser
Automatic Grade
Automatic
Applicable Material
Metal
Type
Flat-Plate
Laser Classification
Solid Laser
Engraving Method
Vector Engraving
Keywords
CO2 Laser Cutting Machine
Laser Type
CO2 Sealed Glass Tube Laser, Water-Cooled, 10.6um
System Environment
XP/Win7/Win8/Win10
Laser Power
100W/130W/150W
Lifting Platform
Yes
Laser Head Blowin
Yes
Water Cut Protection
Yes
Control Configuration
DSP Offline System
Red Light Positioning
Yes
Data Transmission Interface
USB/Network Cable/USB Flash Drive
Cooling Method
USB/Network Cable/USB Flash Drive
Lifting Height
20cm
Laser Energy Control
1-100% Software/Machine Settings
Cutting Depth
0-30mm (Depending on Material and Laser Power)
Operating Temperature
5ºC-35ºC
Transport Package
Wooden Box
Specification
300kg
Trademark
RHINO
Origin
China
HS Code
8456110090
Production Capacity
3000sets/Year

Product Description


Parameter:
Product Model: 1390 Laser power: 180w
Laser Type: CO2 sealed glass tube laser, water-cooled, 10.6um Supply voltage: AC220±10% 50HZ
AC110±10% 60Hz
Working area: 130x90cm Lifting height: 20cm
Engraving scanning speed: 0-60000mm/min Cutting speed: 0-36000mm/min
Control Software: RDworks (supports CDR/CAD output) Laser energy control: 1-100% software/machine settings
Minimum form text: chinese 2.0×2.0mm
English 1.0×1.0mm
Cutting depth: 0-30mm (depending on material and laser power)
Positioning accuracy: ≤±0.01mm Operating Temperature: 5ºC-35ºC
Lifting platform: Yes Red light positioning: Yes
Laser head blowing: Yes Cellular Platforms: Yes
Water cut protection: Yes Power off: support
Hierarchical output: backing Slope engraving: support
Control Configuration: DSP offline system Data transmission interface: USB/network cable/USB flash drive
System Environment: XP/Win7/win8/win10 Cooling method: USB/network cable/USB flash drive
Supported graphic formats: JPG/BMP/CDR/DXF/PLT/WMF and all other formats that CANDELRAW software can support
Machine dimensions and weight: 215x138x108cm 420kg
Package size weight: 228*148*126cm 470kg
